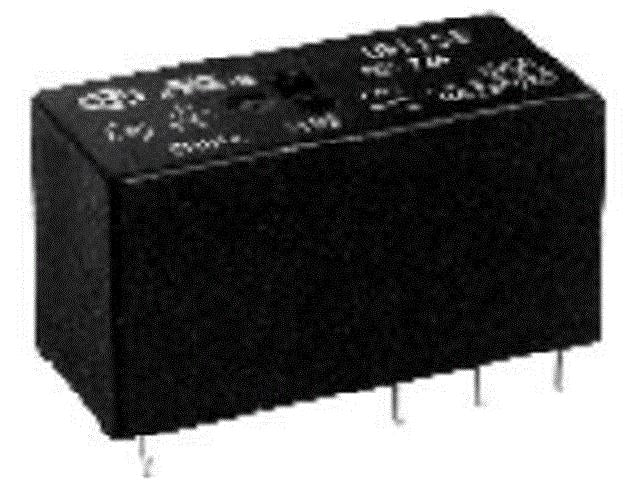

HF115F-005-1ZS3A

Name: HF115F-005-1ZS3A - Communica [Part No: HF115F-005-1ZS3A]
Brand: Hongfa
SKU: HF115F-005-1ZS3A
Price: 51.20 ZAR
Availability: InStock

SKU: HF115F-005-1ZS3A

BRAND: Hongfa

R 58.88_{(inc VAT)}
R 51.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

High Power Mini Sealed Lo Profile Relay Form 1U (1c/o) 5mm Contact Spacing 5VDC 62 Ohm Coil 16A 250VAC (440VAC/300VDC Max.)

High Power Mini Sealed Lo Profile Relay

Specifications

Product Technical Specifications

ECCN (US)	EAR99
Part Status	Active
Automotive	No
PPAP	No
Contact Arrangement	SPDT
Contact Form	1 Form C
DC Coil Voltage (V)	5
Coil Current (mA)	80.65
Coil Resistance (Ohm)	62
Insulation Resistance (MOhm)	1000
Maximum Contact Resistance (mOhm)	100
Maximum Pick-Up Voltage	3.5VDC
Minimum Dropout Voltage	0.5VDC
Maximum AC Switching Voltage (V)	440
Maximum DC Switching Voltage (V)	300
Maximum Switching Current (A)	16
Maximum Switching Power	4kVA
Operate Time (ms)	15
Release Time (ms)	8
Electrical Life (Operations)	75000
Mechanical Life (Operations)	10000000
LED Indicator	No
Push to Test Button	No
Coil Suppression Diode	No
Relay Construction	Non-Latching
Mounting	Through Hole
Termination Style	PC Pin
Number of Terminals	8
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°C)	85
Package Type	DIP
Product Weight (g)	13.5
Product Length (mm)	29
Product Depth (mm)	12.7
Product Height (mm)	15.7

Additional Information

Device

Relay

Discover the HF115F-005-1ZS3A High Power Mini Sealed Lo Profile Relay, designed for optimal performance with a 5VDC coil and 16A switching capacity. Its compact size and robust specifications ensure reliable operation in diverse applications, making it an essential component for your projects. Upgrade your circuitry with this durable and efficient relay, built to last with a mechanical life of up to 10 million operations.
