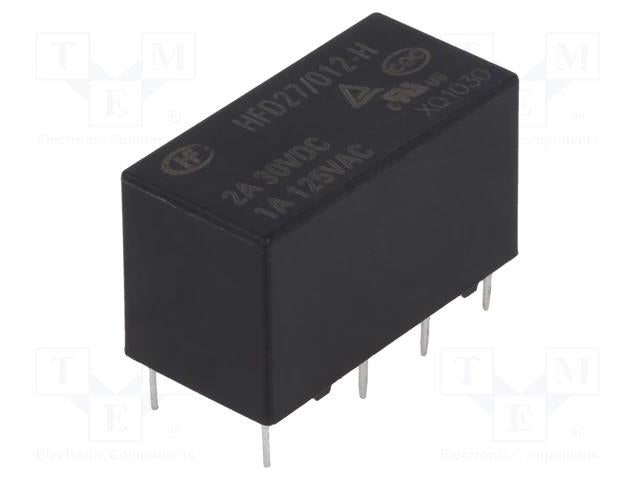

HFD27-012-H

Name: HFD27-012-H - Communica [Part No: HFD27-012-H]
Brand: Hongfa
SKU: HFD27-012-H
Price: 23.63 ZAR
Availability: InStock
Rating: 5.00 (1 reviews)

SKU: HFD27-012-H

BRAND: Hongfa

R 27.17_{(inc VAT)}
R 23.63_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

Sub Mini DIP Sealed Low Power Hi-Sensitive (150mW) Relay Form 2C (2c/o) 12VDC 960 ohm coil 2A 30VDC/1A 125VAC Max.

Sub Mini DIP Sealed Low Power Hi-Sensitive

Specifications

Contacts configuration	DPDT
Rated coil voltage	12V DC
Contact current max.	2A
AC contacts rating @R(at resistive load)	1A / 125V AC
DC contacts rating @R(at resistive load)	2A / 30V DC
Switched voltage	max. 120V DC, max. 240V AC
Relay variant	subminiature
Mounting	PCB
Coil resistance	960Ω
Coil voltage min.	9.6V DC
Coil voltage max.	27.7V DC
Operate time	7ms
Body dimensions	20.2x10x11.5mm
Release time	4ms
Coil power consumption	150mW
Operating temperature	-40...85°C
Contact resistance	100mΩ
Contact material	AgNi + Au
Terminal pitch	5.08mm

Downloads

Datasheet - HFD27-012-H

Additional Information

Device	Relay
Type	Sub Mini \| DIP Sealed \| Low Power \| Hi-Sensitive

Discover the HFD27-012-H Sub Mini DIP Sealed Relay, designed for low power applications with a high sensitivity of just 150mW. With a compact size and robust performance, this relay offers reliability with a maximum switching capacity of 2A at 30VDC and 1A at 125VAC. Enhance your electronic projects with this efficient, space-saving solution that operates flawlessly in extreme temperatures from -40°C to 85°C.
