IAR3F1600

Name: IAR3F1600 - Communica [Part No: IAR3F1600]
Brand: Apem
SKU: IAR3F1600
Price: 369 ZAR
Availability: InStock

SKU: IAR3F1600

BRAND: Apem

R 424.35_{(inc VAT)}
R 369.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Pushbutton Switches

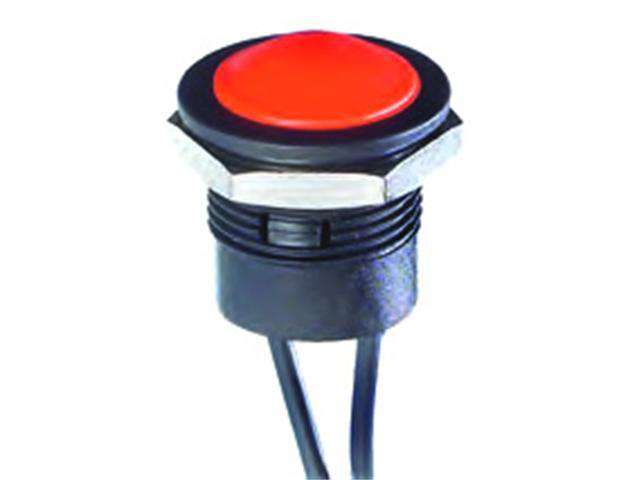

2A 24VDC IP67 Low Profile Push Button Switch with Round Red Actuator

Overview

Features

Resistant to frost, sand and hydrocarbons
Tactile feedback
Front panel sealed to IP65 and IP67

Specification

Max. current/voltage rating with resistive load : 2A 24VDC
Initial Contact Resistance : 100mΩ max.
Insulation Resistance : 100 MΩ min. at 500VDC
Dielectric Strength : 500 Vrms
Electrical Life at Full Load : 1.000.000 cycles
Panel Thickness : 7 mm (.276) max.
Total Travel : 1,5 mm (.059)± 0,3 mm
Typical Operating Force : 7N ±2N
Low Level or Mechanical Life : 1.000.000 cycles
Torque : 0.5 to 1Nm max. applied to nut

Transition Style	Momentary
Actuator Style	Push Button
Termination	Flying Leads
Switch Circuit	MOM N/O
Electrical Rating	2A 24VDC
Actuator Colour	Red
IP Rating	IP67

Downloads

Datasheet Download

Discover the IAR3F1600, a durable 2A 24VDC low-profile push button switch with a vibrant red actuator. Designed for resilience, it boasts IP67 rating for water and dust resistance, making it perfect for challenging environments. Enjoy tactile feedback and reliable performance with a lifespan of over 1 million cycles, ensuring long-lasting operation for your devices. Upgrade your control systems with this reliable and stylish switch today!
