IGS246-M

Name: IGS246-M - Communica [Part No: IGS246-M]
Brand: Communica
SKU: IGS246-M
Price: 147.50 ZAR
Availability: InStock

SKU: IGS246-M

BRAND: Communica

R 169.63_{(inc VAT)}
R 147.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Discontinued Item, Key Switches

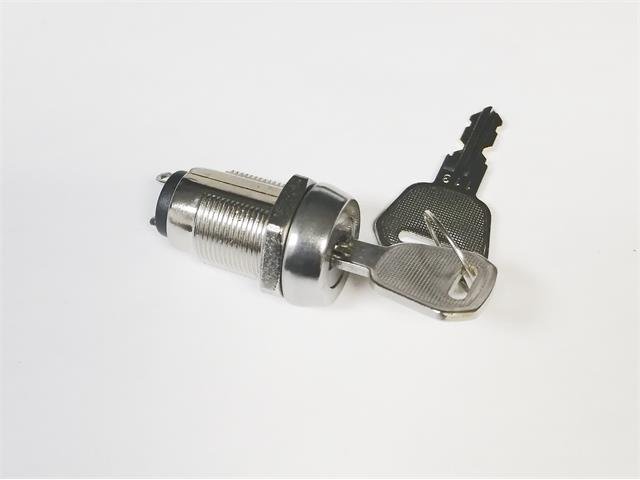

Key Switch STD Flat SPST Key Pull 1 4A OFF(ON) 2T (Momentary) M19

4A STD Flat SPST Pull Key Switch

Feature(s)

Zinc alloy die cast and cylinder
Yellow chrmate plated standard
Stainless steel capped bezel with dust shutter mechanism
5 disc tumbler mechanism
Reversible double-bitted brass keys, nickel plated
Key may be withdrawn in one or both positions
Silver plated contracts and terminals
S246m 2 position (off-on) 2 terminals loaded for momentary contact
Hex nut mounted
100 combinations available

Specifications

Contact Rated: 4A 125VAC, 2A 250VAC
Contact Resistance: 10 Milli-Ohms Max
Insulation Ressistance : 500 Meg-Ohms Min(500VDC)
Dielectric Strength: 1500 VAC - Minute

Downloads

Datasheet - IGS246-M

Additional Information

Device	Key Switch
Type	STD \| Flat \| SPST \| Pull

Elevate your security with the IGS246-M Key Switch. This durable flat SPST pull switch features a robust zinc alloy design, stainless steel bezel, and reversible brass keys for versatile access. Offering momentary contact and up to 100 combinations, it ensures reliable performance in any setting. Perfect for enhancing control in your e-commerce applications!
