IMR7P422

Name: IMR7P422 - Communica [Part No: IMR7P422]
Brand: Apem
SKU: IMR7P422
Price: 254 ZAR
Availability: InStock

SKU: IMR7P422

BRAND: Apem

R 292.10_{(inc VAT)}
R 254.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Pushbutton Switches

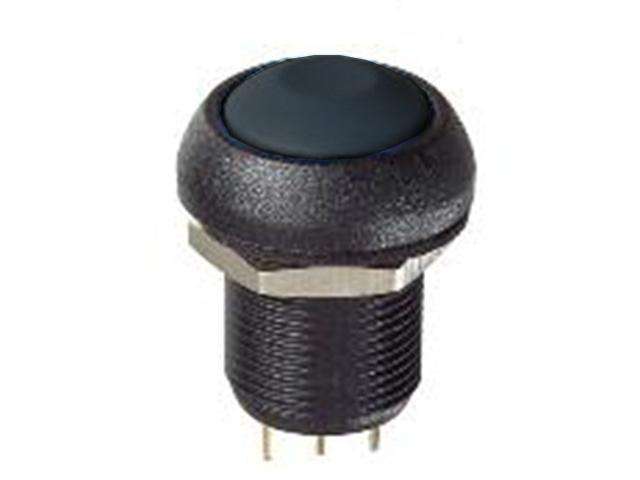

3A 28VDC IP67 Sealed Snap Action Pushbutton Switch with 12mm Diameter Bushing and Round Black Actuator

Overview

Features

Snap-action : tactile feedback with audible click
High current/voltage rating
Sealed to IP67
Flat round actuator for optional marking

Specification

Environmental Specifications

Front Panel Sealing : IP67 according to IEC 60529
Shock Resistance : 50g - 11ms according to IEC 68-2-27
Salt Spray : IEC 512-6, test 11f
Operating Temperature : -40°C to +85°C
Storage Temperature : -40°C to 85°C

Electrical Specifications

Max. current/voltage rating with resistive load : 3A 28VDC
Initial Contact Resistance : 100 mΩ max.
Insulation Resistance : 1 GΩ min. at 500VDC
Dielectric Strength : 500 Vrms between terminals
Electrical Life at Full Load : 25.000 cycles

General Specifications

Panel Thickness : 1.5 mm (.059) to 10 mm (.394)
Total Travel : 1.7 mm (.067) ±0,3 mm
Low Level or Mechanical Life : 1.000.000 cycles
Torque : 1.5 Nm ma

Transition Style	Momentary
Actuator Style	Push Button
Termination	Straight PC
Switch Circuit	NO+NC
Electrical Rating	3A 24VDC
Actuator Colour	Black
IP Rating	IP67

Downloads

Datasheet Download

Experience reliability with the IMR7P422 Snap Action Pushbutton Switch, featuring a durable IP67 sealing for optimal protection. This 3A 28VDC switch delivers tactile feedback and an audible click, ensuring precision in every operation. Ideal for various applications, its robust design withstands harsh environments, making it a perfect choice for your electronic projects.
