JQX40F-1Z-DC12V

Name: JQX40F-1Z-DC12V - Communica [Part No: JQX40F-1Z-DC12V]
Brand: Asiaon
SKU: JQX40F-1Z-DC12V
Price: 182 ZAR
Availability: InStock

SKU: JQX40F-1Z-DC12V

BRAND: Asiaon

R 209.30_{(inc VAT)}
R 182.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

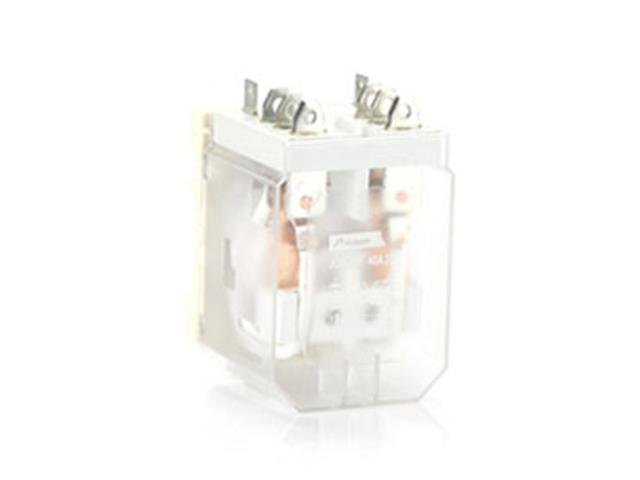

High Power Flange Mounted Relay With Screw Terminals Form 1C (1c/o) 12VDC Coil 72 Ohm 40A/250VAC/28VDC

High Power Flange Mounted Relay

Additional Information

Device	Relay
Type	High Power \| Flange \| Mounted

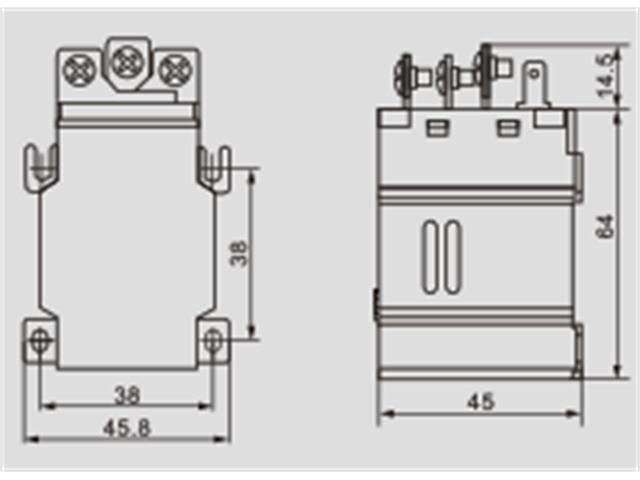

Highlights	Size 51 x 48 x 82mm High inc. Terminals. 38mm Mounting Centres
Contact Form	Form 1C (1c/o)
Coil Rated Voltage	12V
AC/DC Voltage	DC
Max. Switching Current	40A
Electrical Rating	250VAC/28VDC
Coil Resistance	72Ω

Upgrade your electrical projects with the JQX40F-1Z-DC12V High Power Flange Mounted Relay. Featuring a robust 40A capacity and a compact design, this reliable relay ensures efficient switching with a 12VDC coil. Perfect for both AC and DC applications, it offers exceptional performance and durability for all your power management needs.
