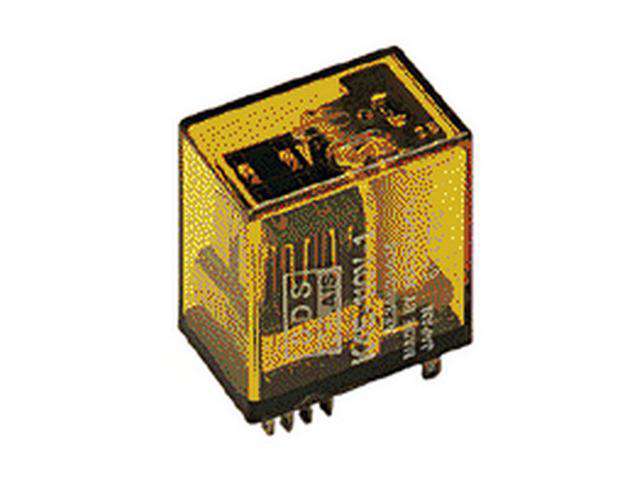

K6P-48V

Name: K6P-48V - Communica [Part No: K6P-48V]
Brand: Panasonic
SKU: K6P-48V
Price: 147 ZAR
Availability: OutOfStock

SKU: K6P-48V

BRAND: Panasonic

Sold Out
R 169.05_{(inc VAT)}
R 147.00_{(ex VAT)}

Collections: Electromechanical

Type: Relays

Category: Power Relays

Medium Power Relay • Form 6C • VCoil= 48V DC • IMax Switching= 1A • RCoil= 1.7kΩ • PCB • Vertical Case

Overview

Features

Bifurcated Contacts

Specification

Contact Form	Form 6C
Size Category	Std Size
Size	35x19x30mm
Termination	PCB
Coil Rated Voltage	48V
AC/DC Voltage	DC
Max. Switching Current	1A
Electrical Rating	2A/220VAC/VDC
Coil Power	1.35W Power
Coil Resistance	1.7kΩ
Isolation Voltage	750V
Approvals	UL/CSA
Contact Material	Ag
No. of Pins	20 Pin(s)
No. of Poles	6 Pole(s)

Downloads

Datasheet Download

Upgrade your projects with the K6P-48V Medium Power Relay, designed for reliability and efficiency. With a 1A max switching capacity, UL/CSA approval, and a compact 35x19x30mm size, this relay ensures optimal performance for your PCB applications. Experience superior control with bifurcated contacts and a robust 48V DC coil, making it the perfect choice for your electrical needs.
