KSJ100D20-L

Name: KSJ100D20-L - Communica [Part No: KSJ100D20-L]
Brand: Kudom
SKU: KSJ100D20-L
Price: 869 ZAR
Availability: InStock

SKU: KSJ100D20-L

BRAND: Kudom

R 999.35_{(inc VAT)}
R 869.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Solid State Relays

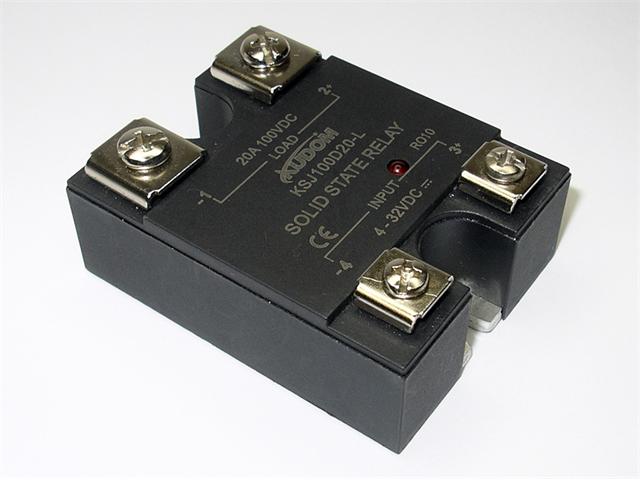

100VDC 20A Single Phase Solid State Relay with 4~32VDC Control Voltage and LED Indication

100VDC 20A Solid State Relay

Features

Suitable cover : KPC-0A ; Suitable heatsink : KHS-1A , KHS-1B and KHS-1C

Specifications

Input Circuit :
- Control Voltage Range : 4~32VDC
- Minimum Turn-On Voltage : 4VDC
- Minimum Turn-Off Voltage : 1VDC
- Maximum Input Current : 28mA@32VDC
Output Circuit
- Load Voltage Range : 0~100VDC
- Transient Overvoltage : 80Vpk
- Load Current Range : 0.02~4A
- Maximum Surge Current [@10ms] : 80A
- Maximum Turn-On Time : 100us
- Maximum Turn-Off Time : 500us
Dielectric Strength : ≥2500Vrms [Input/Output]

Downloads

Datasheet - Kudom KSJ100

Additional Information

Keywords	relay, solid state, solid state relay, kudom,
Device	Relay
Type	Solid State \| DC Output
Highlights	58.6x45.7x26.56mm \| SIL \| LED Indication

Upgrade your control system with the KSJ100D20-L Solid State Relay, designed for 100VDC and 20A performance. Featuring a control voltage range of 4-32VDC and quick response times, this reliable relay ensures efficient operation and LED indication for easy monitoring. Perfect for various applications, it provides superior durability and safety with high dielectric strength.
