KTP06

Name: KTP06 - Communica [Part No: KTP06]
Brand: Communica
SKU: KTP06
Price: 14.68 ZAR
Availability: InStock

SKU: KTP06

BRAND: Communica

R 16.88_{(inc VAT)}
R 14.68_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

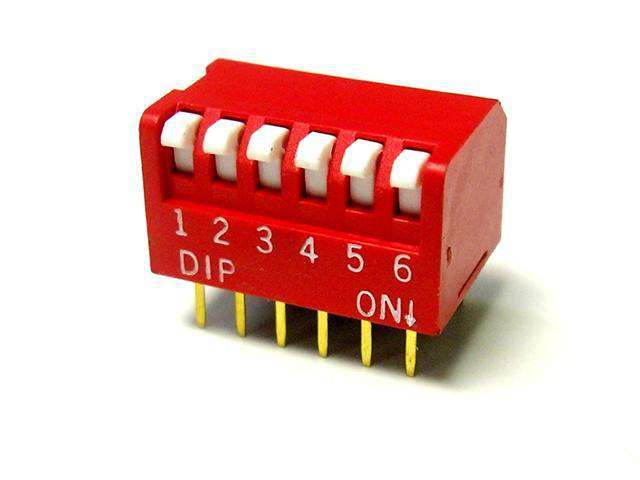

Piano Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 400gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Short-Piano Key
Actuating Force	400gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	6Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your electronic projects with the KTP06 Piano Type DIP Switch. Featuring a compact 2.54mm pitch and a reliable 1A-SPST(NO) circuit, this switch ensures optimal performance with a 400gf actuation force. Designed for durability, it supports 2000 operation cycles and operates smoothly in temperatures from -20°C to +70°C, making it the perfect choice for your PCB needs.
