KTS02

Name: KTS02 - Communica [Part No: KTS02]
Brand: Communica
SKU: KTS02
Price: 12.60 ZAR
Availability: OutOfStock

SKU: KTS02

BRAND: Communica

Sold Out
R 14.49_{(inc VAT)}
R 12.60_{(ex VAT)}

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

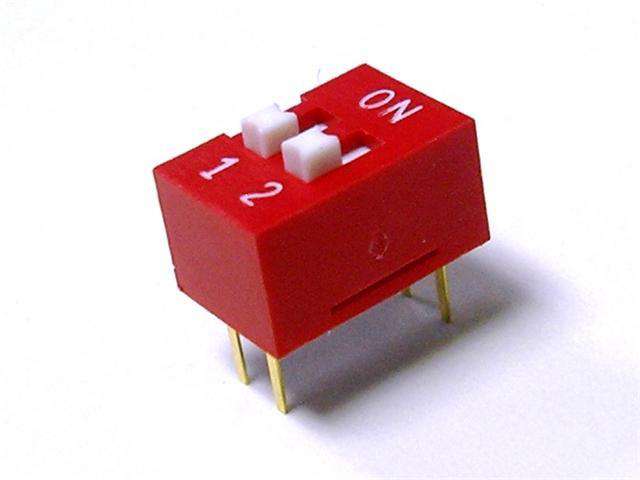

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	1000gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	2Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your projects with the KTS02 Slide Type DIP Switch, featuring a reliable 1A-SPST(NO) circuit for seamless connectivity. Designed for durability with a latching transition style and a robust actuator, it ensures dependable performance in various applications. With a compact 2.54mm pitch and a temperature range of -20°C to +70°C, this switch is perfect for both hobbyists and professionals seeking quality and reliability.
