KTS03

Name: KTS03 - Communica [Part No: KTS03]
Brand: Communica
SKU: KTS03
Price: 13.60 ZAR
Availability: InStock

SKU: KTS03

BRAND: Communica

R 15.64_{(inc VAT)}
R 13.60_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

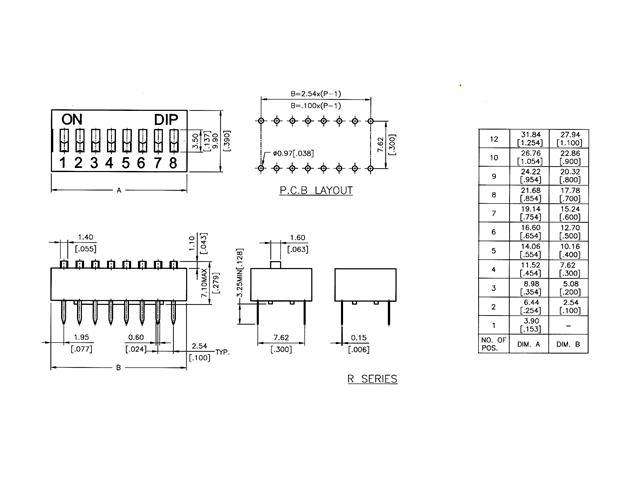

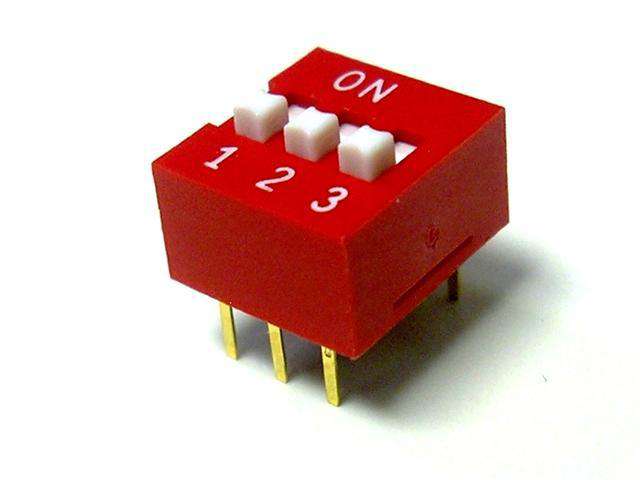

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	1000gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	3Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Elevate your electronic projects with the KTS03 Slide Type DIP Switch. Featuring a reliable 1A-SPST(NO) design and a durable PCB-Thru-Hole configuration, this switch ensures seamless operation with a 25mA-24VDC rating. With a sturdy actuator and a wide temperature range, the KTS03 is perfect for all your circuit needs, delivering exceptional performance and longevity.
