KTS04

Name: KTS04 - Communica [Part No: KTS04]
Brand: Communica
SKU: KTS04
Price: 14.20 ZAR
Availability: InStock

SKU: KTS04

BRAND: Communica

R 16.33_{(inc VAT)}
R 14.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

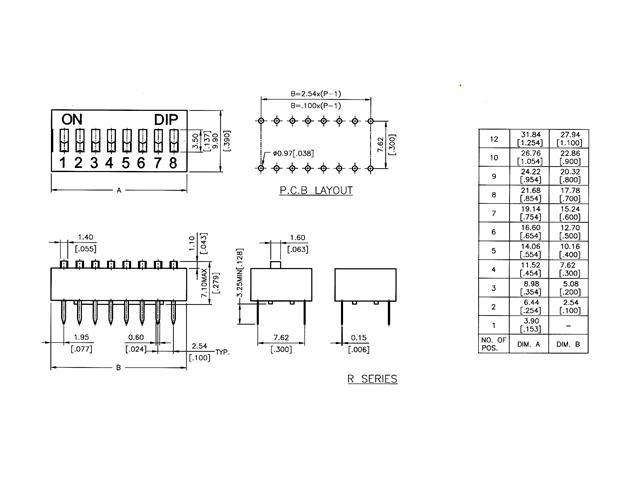

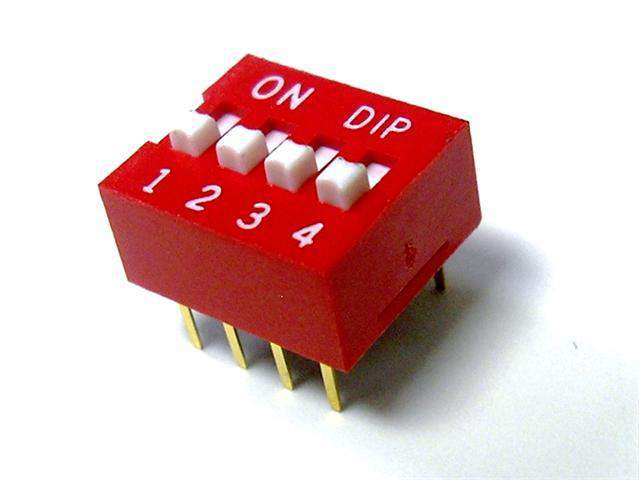

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	1000gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	4Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Discover the KTS04 Slide Type DIP Switch, designed for reliable performance with a compact 2.54mm pitch. This durable switch features a raised actuator for easy operation, handling up to 25mA at 24VDC. Perfect for PCB applications, it ensures long-lasting functionality with a mechanical life of 2000 operations, making it an essential choice for your electronic projects.
