KTS07E

Name: KTS07E - Communica [Part No: KTS07E]
Brand: Communica
SKU: KTS07E
Price: 9 ZAR
Availability: InStock

SKU: KTS07E

BRAND: Communica

R 10.35_{(inc VAT)}
R 9.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

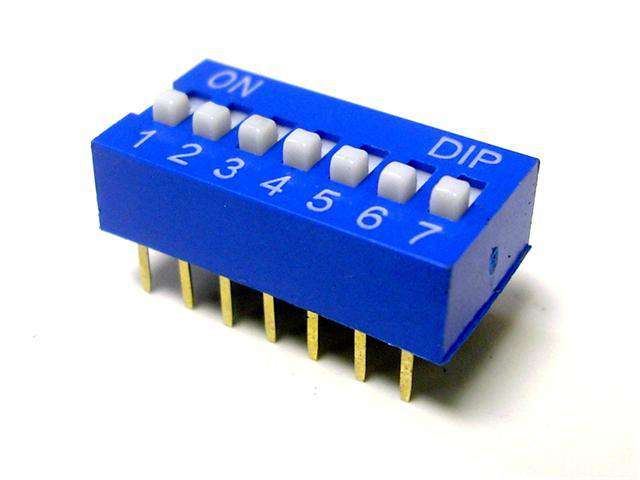

Slide Type Economy DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 200gf max • PCB-Thru-Hole Straight

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	200gf max
Termination	PCB-Thru-Hole Straight
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	7Pos
Base Colour	Blue
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your projects with the KTS07E Slide Type Economy DIP Switch, featuring a reliable 1A-SPST(NO) circuit and a compact 2.54mm pitch. Designed for durability, it supports 2000 operations and handles up to 25mA-24VDC, making it perfect for various electronic applications. Enjoy seamless integration with PCB-thru-hole mounting and a sleek blue base with a white raised actuator.
