KTSA04

Name: KTSA04 - Communica [Part No: KTSA04]
Brand: Communica
SKU: KTSA04
Price: 15.48 ZAR
Availability: InStock

SKU: KTSA04

BRAND: Communica

R 17.80_{(inc VAT)}
R 15.48_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: DIP and SIP Switches

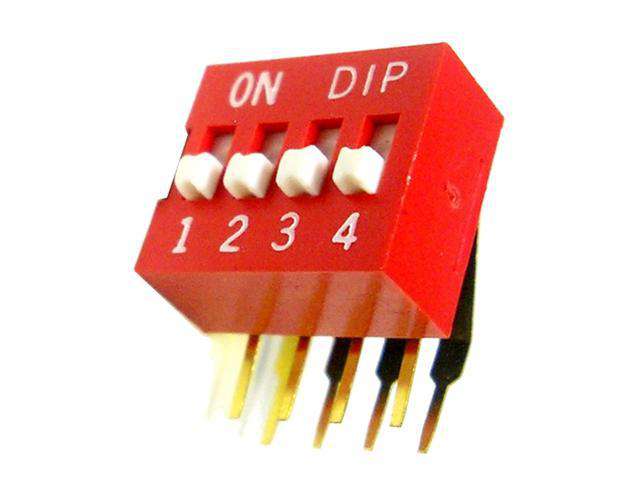

Slide Type DIP Switch • Pitch : 2,54mm • Form : 1A-SPST(NO) • 25mA-24VDC • 1000gf max • PCB-Thru-Hole Right Angle

Overview

Features

Specification

Transition Style	Latching
Actuator Style	Raised-Actuator
Actuating Force	1000gf max
Termination	PCB-Thru-Hole Right Angle
Switch Circuit	1A-SPST(NO)
Electrical Rating	25mA-24VDC
Electrical Life	2000 Operation Cycles
No.of Poles/Pins	4Pos
Base Colour	Red
Actuator Colour	White
Size	Pitch : 2,54mm
Mechanical Life	2000 Operations
Stroke	2.0mm
Temperature	-20°C ~ +70°C

Upgrade your projects with the KTSA04 Slide Type DIP Switch, featuring a compact 2.54mm pitch and reliable 1A-SPST(NO) circuit. With a robust 1000gf actuation force and a temperature range of -20°C to +70°C, this switch ensures durability and performance in demanding conditions. Perfect for PCB applications, it seamlessly integrates into your designs, delivering exceptional value and reliability.
