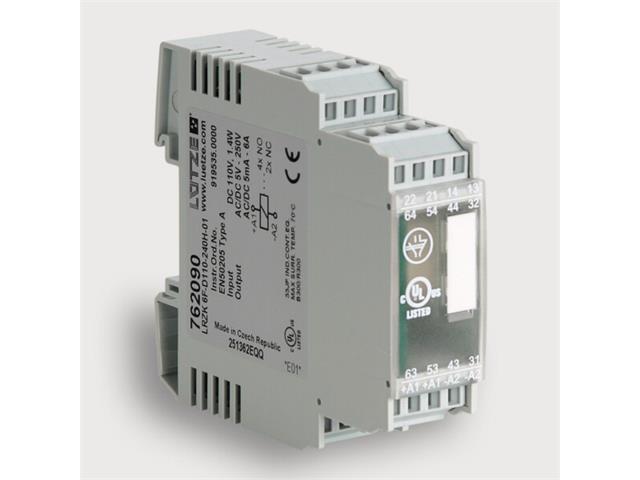

Relay module with forced-guided contacts according to EN 50205 for safety circuits. The control is via DC 110 V. There are 2 openers and 4 contact contacts 250 V / 6 A are available for switching small to medium loads
Specifications
Rated voltage UN : DC 110 V
Voltage rangeDC 77 V - 137.5 V
Rated current (for UN)12 mA
Status indicator LEDLED yellow
Protective circuit input side
Freewheeling diode
Reverse polarity diode
Switching voltageAC/DC 5 V - 250 V
Switching currentAC/DC 0.005 A - 6 A
Switching power1500 VA / (50 W x DC 24 V)
Contact materialAgCuNi + 0.2 microns Au
General data
Connection type
Push
Single-wire 0.20 - 2.5 mm2
AWG 20 - AWG 14
Hostile 0.20 - 2.5 mm2
AWG 20 - AWG 14
Stripping length: 8 mm
Screwdriver: 3.5 x 0.6 mm
Installation position/type of installationAny : Any
Short-circuit resistance : 1000 A, SCPD 6 A Functional class gG (pre-fuse)
Rated insulation voltage
AC/DC 300 V between control and load side
AC/DC 300 V between coil and control contacts
Degree : PD2
Surge category : OV2
Contact type : 2 opener, 4 normally open (forced-guided, according to EN 50205 application type A)
Mech. Life : approx. 10 x 106 switching cycles
Housing material : PC ABS
Working temperature range : -40 °C ... +70 °C (+85 °C 10 min)
Storage temperature range : -40°C... 85°C
Dimensions (B-H-T) : 22.5x79x84mm
Weight : 0.089 kg/pc
Design : Microcompact
Assembly : snaptable on hat rail TS35 (EN 60715)
Protection : IP20
Additional Information
Device
Railway
Type
Railway | 110VDC
Enhance your safety circuits with the LRZK 6F-D110-240H-01 Relay, designed for 110VDC applications. Featuring forced-guided contacts and a compact design, it ensures reliable operation for small to medium loads. Benefit from LED status indicators and robust performance in harsh environments, making it an ideal choice for railway systems. Upgrade your control solutions today!
