M2029SS1W03

Name: M2029SS1W03 - Communica [Part No: M2029SS1W03]
Brand: NKK
SKU: M2029SS1W03
Price: 46 ZAR
Availability: InStock

SKU: M2029SS1W03

BRAND: NKK

R 52.90_{(inc VAT)}
R 46.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Toggle Switches

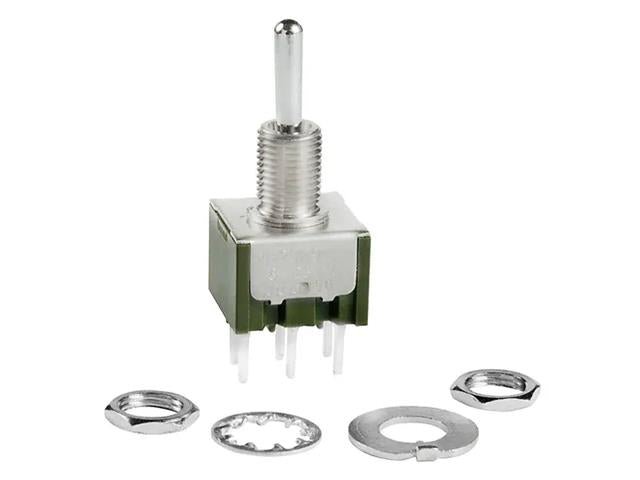

DPDT ON OFF (ON) PCB Tag 6A 125V 10,5mm Bat 8,9mm Threaded Bushing with Keyway Silver Contact Solder Lug

6A 125V Solder Tag Switch

Specifications

Series : M
Mounting Type : Panel Mount
Circuit : DPDT
Switch Function : On-Off-Mom
Current Rating (Amps) : 6A (AC), 3A (DC)
Voltage Rating - AC : 125V
Voltage Rating - DC : 30V
Actuator Type : Standard Round
Actuator Length : 10.50mm
Illumination : Non-Illuminated
Termination Style : PC Pin
Panel Cutout Dimensions : Circular - 6.50mm Dia
Bushing Thread : 1/4-40
Features : Epoxy Sealed Terminals
Operating Temperature : -30°C ~ 85°C
Actuator Material : Brass, Chrome Plated
Electrical Life : 25,000 Cycles

Additional Information

Device	Switch
Type	PCB Tag

Enhance your projects with the M2029SS1W03 DPDT ON OFF PCB Tag Switch, designed for reliable performance with a 6A rating at 125V. Its durable brass actuator and epoxy-sealed terminals ensure longevity, making it ideal for various applications. Upgrade your circuit control with this efficient and versatile switch today!
