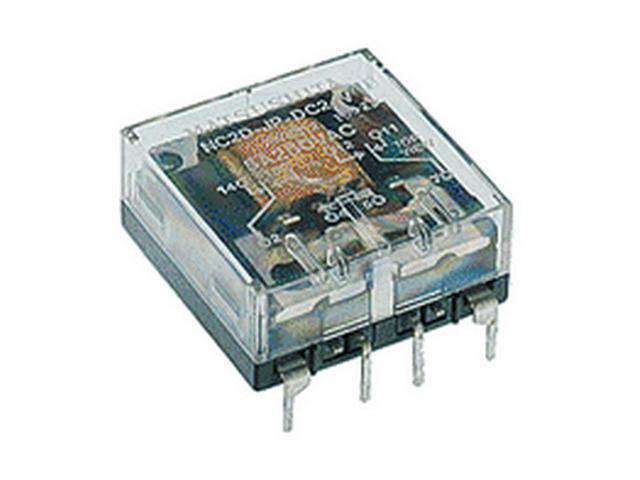

NC2D-JPL2-DC24V

Name: NC2D-JPL2-DC24V - Communica [Part No: NC2D-JPL2-DC24V]
Brand: Panasonic
SKU: NC2D-JPL2-DC24V
Price: 288 ZAR
Availability: InStock

SKU: NC2D-JPL2-DC24V

BRAND: Panasonic

R 331.20_{(inc VAT)}
R 288.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

Medium Power Relay • Form 2C • VCoil= 24V DC • IMax Switching= 5A • RCoil= 720Ω • PCB • Horizontal Case

Overview

Features

Bifurcated Contacts
Double Coil Latching
Horizontal Case

Specification

Model	NC2D-JPL2D-C24V
Contact Form	Form 2C
Size Category	Std Size
Size	25x25x11mm
Termination	PCB
Coil Rated Voltage	24V
AC/DC Voltage	DC
Max. Switching Current	5A
Electrical Rating	5A/250VAC
Coil Power	800mW Power
Coil Resistance	720Ω
Isolation Voltage	2KV
Approvals	UL/CSA
Contact Material	Ag
No. of Pins	10 Pin(s)
No. of Poles	2 Pole(s)

Downloads

Datasheet Download

Upgrade your control systems with the NC2D-JPL2-DC24V medium power relay. Featuring bifurcated contacts and double coil latching, this reliable relay handles up to 5A with a 24V DC coil, ensuring efficient performance for your PCB applications. Trust in its UL/CSA approval for safety and durability.
