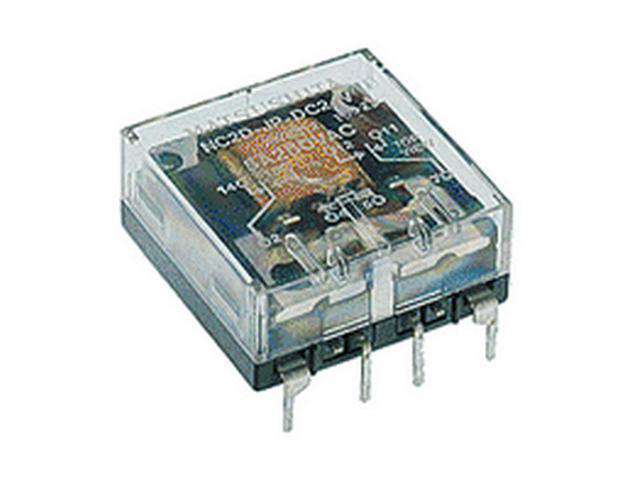

NC2D-JPL2-DC6V

Name: NC2D-JPL2-DC6V - Communica [Part No: NC2D-JPL2-DC6V]
Brand: Panasonic
SKU: NC2D-JPL2-DC6V
Price: 202.50 ZAR
Availability: InStock

SKU: NC2D-JPL2-DC6V

BRAND: Panasonic

R 232.88_{(inc VAT)}
R 202.50_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

Medium Power Relay • Form 2C • VCoil= 6V DC • IMax Switching= 5A • RCoil= 45Ω • PCB • Horizontal Case

Overview

Features

Bifurcated Contacts
Double Coil Latching
Horizontal Case

Specification

Model	NC2D-JPL2-DC6V
Contact Form	Form 2C
Size Category	Std Size
Size	25x25x11mm
Termination	PCB
Coil Rated Voltage	6V
AC/DC Voltage	DC
Max. Switching Current	5A
Electrical Rating	5A/250VAC
Coil Power	800mW Power
Coil Resistance	45Ω
Isolation Voltage	2KV
Approvals	UL/CSA
Contact Material	Ag
No. of Pins	10 Pin(s)
No. of Poles	2 Pole(s)

Downloads

Datasheet Download

Discover the NC2D-JPL2-DC6V medium power relay, designed for reliability with bifurcated contacts and a double coil latching mechanism. This compact 6V DC relay supports max switching of 5A, ideal for your PCB applications. Enhance your projects with superior isolation and UL/CSA approval for peace of mind.
