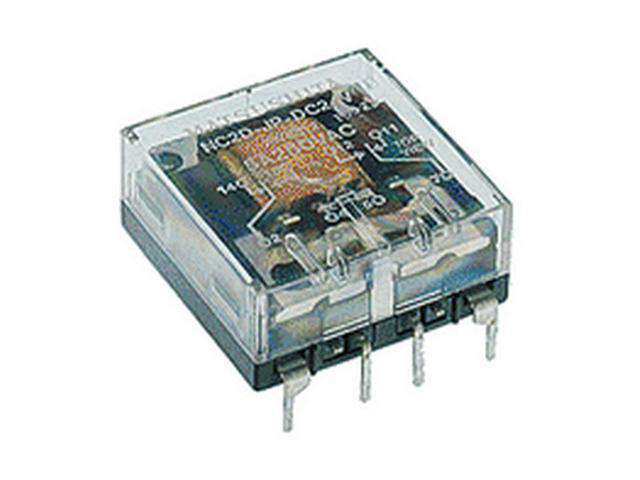

NC4ED-JP-DC24V

Name: NC4ED-JP-DC24V - Communica [Part No: NC4ED-JP-DC24V]
Brand: Panasonic
SKU: NC4ED-JP-DC24V
Price: 284 ZAR
Availability: InStock

SKU: NC4ED-JP-DC24V

BRAND: Panasonic

R 326.60_{(inc VAT)}
R 284.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Relays

Category: Power Relays

Medium Power Relay • Form 4C • VCoil= 24V DC • IMax Switching= 5A • RCoil= 800 Ω • PCB • Horizontal Case

Overview

Features

Bifurcated Contacts
Horizontal Case

Specification

Model	NC4ED-JP-DC24V
Contact Form	Form 4C
Size Category	Std Size
Size	38x25x11mm
Termination	PCB
Coil Rated Voltage	24V
AC/DC Voltage	DC
Max. Switching Current	5A
Electrical Rating	5A/250VAC
Coil Power	720mW Power
Coil Resistance	800 Ω
Isolation Voltage	2KV
Approvals	UL/CSA
Contact Material	Ag
No. of Pins	14 Pin(s)
No. of Poles	4 Pole(s)

Downloads

Datasheet Download

Discover the NC4ED-JP-DC24V Medium Power Relay, designed for reliable performance with 24V DC operation and a robust 5A max switching current. Featuring bifurcated contacts and a compact PCB design, this relay ensures efficient power management in your applications. Trust its UL/CSA approvals for safety and durability, making it the ideal choice for your electronic projects.
