PBL809C-H

Name: PBL809C-H - Communica [Part No: PBL809C-H]
Brand: Salecom
SKU: PBL809C-H
Price: 21.15 ZAR
Availability: InStock

SKU: PBL809C-H

BRAND: Salecom

R 24.32_{(inc VAT)}
R 21.15_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Pushbutton Switches

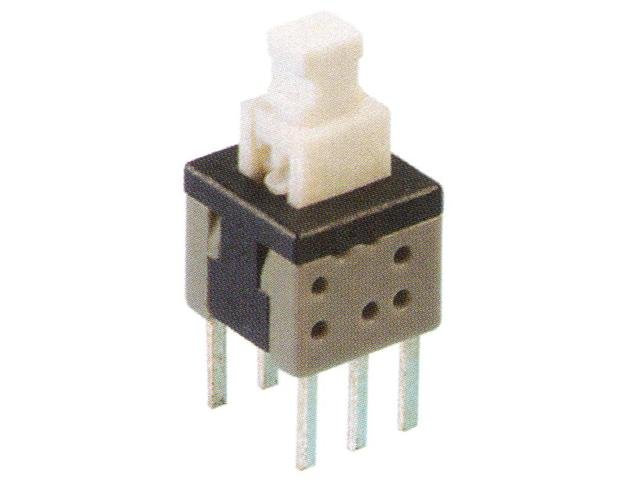

30VDC 1A 6Pin Push Button Switch • Latching • PCB

Push Button Switch

Specifications

Insulation Resistance : >100mΩ 250VDC
With Voltage : 250VAC 1 minute
Contact Resistance : <50mΩ
Soldering Temper. : 25°C max. 3sec
Mechanical Life : 100,000 cycles
Electrical Life 10,000 cycles
Ambient Temper. Used : -20°C to 65°C
Ambient Humidity Used <85% RH
Operation Force : 160 ± 80g

Downloads

Datasheet - PBL809C-H

Additional Information

Device	Switch
Type	Push Button
Transition Style	Latching
Termination	PCB
Voltage Rating	30V
Voltage Type	DC
Current Rating	1A
Mechanical Life	100000 cycles
Temperature	-20~65°C

Elevate your projects with the PBL809C-H 30VDC Latching Push Button Switch. Designed for durability, it boasts a mechanical life of 100,000 cycles and reliable performance in diverse environments. Perfect for PCB applications, this switch ensures seamless operation and longevity, making it an essential component for your electronic designs.
