SW-05S-034A-A5

Name: SW-05S-034A-A5 - Communica [Part No: SW-05S-034A-A5]
Brand: Communica
SKU: SW-05S-034A-A5
Price: 115.20 ZAR
Availability: InStock

SKU: SW-05S-034A-A5

BRAND: Communica

R 132.48_{(inc VAT)}
R 115.20_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Electromechanical

Type: Switches

Category: Micro Switches

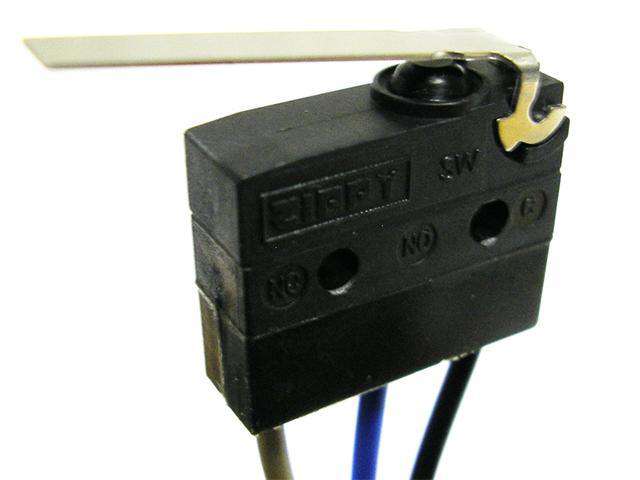

Sub-Miniature Sealed Micro Switch • Form : 1C-SPDT(CO) • 5A-250VAC • Straight-Leads • Extended-Lever Actuator

Overview

Features

Contact Resistance (initial) : Max. 100mΩ
Insulation Resistance (at 500VDC/minute) : Min 100MΩ
Dielectric Strength : AC 1000VAC (50~60Hz)
Storage Temperature Range : -25°C to 85°C
Storage Humidity : @ 40°C, Max. 85% R.H
Vibration : 10~55Hz, displacement 0.75mm (p-p)
Electrical Service Life : Min.10,000 operations
Electrical Operating Frequency : 10~30 operations per minute
Mechanical Service Life : Min 2,000,000 operations
Mechanical Operating Frequency : 120 operations per minute

Specification

Transition Style	Momentary
Actuator Style	Extended-Lever
Termination	Straight-Leads
Switch Circuit	1C-SPDT(CO)
Electrical Rating	5A-250VAC
No.of Poles/Pins	3Pin

Discover the SW-05S-034A-A5 Sub-Miniature Sealed Micro Switch, designed for reliability and durability. With a compact 1C-SPDT configuration and a robust electrical rating of 5A-250VAC, this switch ensures optimal performance in various applications. Enjoy long-lasting use with a mechanical life of up to 2 million operations, making it the perfect choice for your electronic projects.
