V15FL22C2

SKU: V15FL22C2

BRAND: Communica

In Stock
R 55.37_{(inc VAT)}
R 48.15_{(ex VAT)}

Collections: Electromechanical

Category: Micro Switches

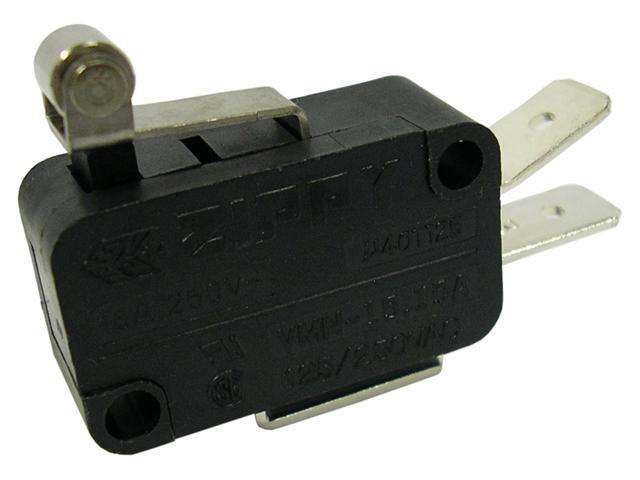

Miniature Micro Switch • Form : 1C-SPDT(CO) • 15A-250VAC • Quick-Connecting • Roller-Lever-(Short) Actuator

Overview

Features

Contact Resistance (initial) : Max. 100mΩ
Insulation Resistance (at 500VDC/minute) : Min 100MΩ
Dielectric Strength : AC 1000VAC (50~60Hz)
Storage Temperature Range : -25°C to 85°C
Storage Humidity : @ 40°C, Max. 85% R.H
Vibration : 10~55Hz, displacement 0.75mm (p-p)
Electrical Service Life : 0.1A - Min.1,000,000 operations
Other ratings - Min 10,000 operations
Electrical Operating Frequency : 0.1A - 120 operations per minute
Other ratings - 10-30 operations per minute
Mechanical Service Life : Min 10,000,000 operations
Mechanical Operating Frequency : 120 operations per minute

Specification

Transition Style	Momentary
Actuator Style	Roller-Lever-(Short)
Termination	Quick-Connecting
Switch Circuit	1C-SPDT(CO)
Electrical Rating	15A-250VAC
No.of Poles/Pins	3Pin
