RS485 MODBUS RTU Standard Communication Protocol -Three Current Output Channel: DC4~20mA
RTU Standard Communication Protocol
Overview
WELLPRO range of RS-485 Modbus devices is great for signal collection and control of industrial devices and make use of the RS485 MODBUS RTU communication protocol
Features
Three current output channel: DC4~20mA
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication status LED
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
Specifications
Analog output channel 3ch
Analog output range DC4~20mA
Analog output accuracy ±0.03mA
Maximum output load 1050Ω（DC24V）
Working temperature -20~70℃
External power supply DC9V~30V/2W
Isolation protection DC1500V
Installation method Standard DIN slide rail or screw
Dimension 125×73×35mm
Pin Function
AVcc : External power supply input positive
AGnd : External power supply input negative / Power ground
Iout1: Current output channel 1 positive
AGnd: Current output channel 1 negative / Analog ground / Power ground
Iout2: Current output channel 2 positive
AGnd: Current output channel 2 negative / Analog ground / Power ground
Iout3: Current output channel 3 positive
AGnd: Current output channel 3 negative / Analog ground / Power ground

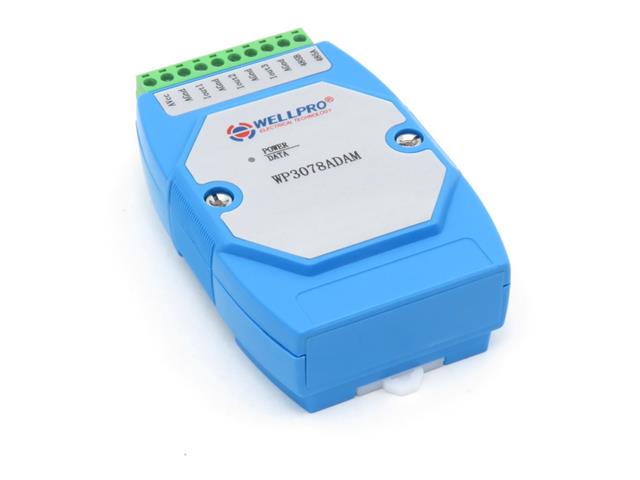

Enhance your industrial automation with the WP3078ADAM RS485 Modbus RTU device. Featuring three current output channels (DC4-20mA) and robust thunder protection, this reliable solution ensures seamless signal collection and control. Its easy integration with PLCs and touch panels makes it perfect for optimizing your operations.
