Enclosure Diecast Aluminium Black 222 x 146 x 105.1 mm (With Lid) IP54
Features
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
- Available in natural vibra finish OR in light textured, black powder paint
- Unpainted version is vibra finished for a smooth surface with no sharp edges
- Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance
- Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding. When water-tight gaskets are installed

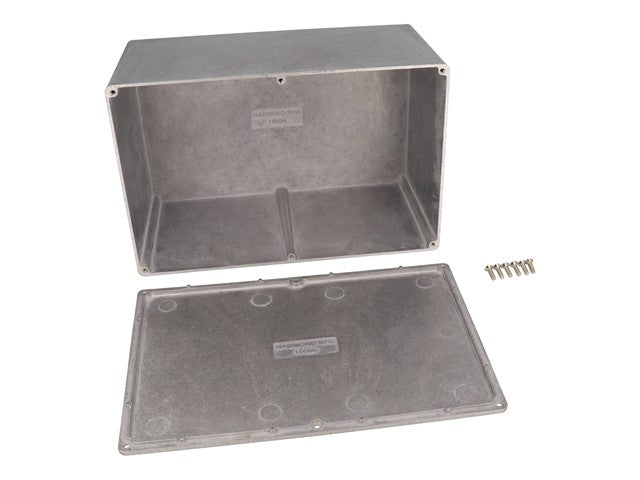

- Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes
- Designed to meet IP 54 without a gasket or IP66 with a gasket. IP67 upgraded gaskets are available
- No internal ribs for easy installation of connectors without interference or additional milling
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
- Add 0.16" (4 mm) to enclosure depth for lid
Specifications
Product Type |
Diecast Aluminium Enclosure |
Series |
1550 |
Body Material |
Diecast Aluminium |
External Dimensions |
222 x 146 x 105.1 mm (With Lid) |
External Length |
222 mm |
External Width |
146 mm |
External Height |
105.1 mm (With Lid) |
Internal Dimensions |
212.84 x 124.84 x 101.10 mm |
Internal Length |
212.84 mm |
Internal Width |
124.84 mm |
Internal Height |
101.10 mm |
Colour |
Natural |
IP Rating |
IP54 |
Lid Colour |
Natural |
Protection Features |
Protection against Access of Dust and Splashing Water |
Shielded |
Yes |
