1551V11BK - Plastic Enclosures - 623980103082

1551V11BK

Name: 1551V11BK - Communica [Part No: 1551V11BK]
Brand: Hammond
SKU: 1551V11BK
Price: 49 ZAR
Availability: InStock

SKU: 1551V11BK

BRAND: Hammond

R 56.35_{(inc VAT)}
R 49.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP30 ABS Plastic

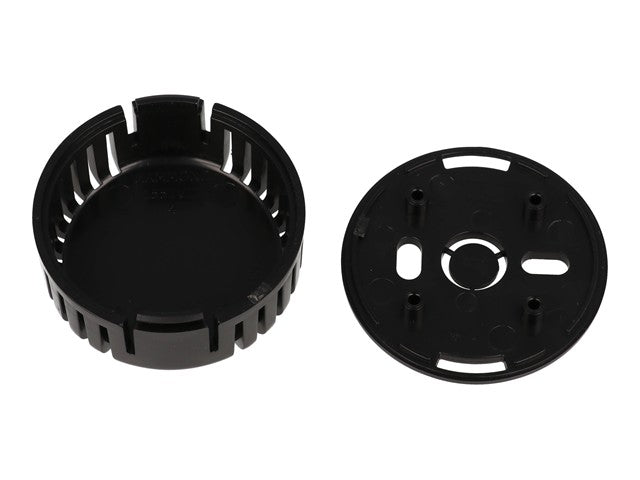

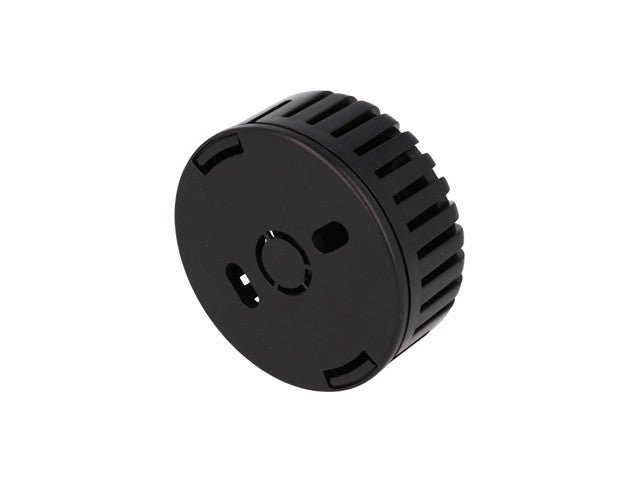

ABS Plastic Miniature Enclosure - Snap-Fit / Wall-Mount Round 45x20mm Vented IP30 - Black

ABS Plastic Miniature Enclosure

Feature(s)

Simple snap-fit assembly and wall-mounting features designed for IoT or general purpose applications.
Choice of vented or unvented.
Vented versions protect electronics from harmful contact with hands or tools, but allows entry of air and moisture for applications which require environmental exposure (e.g. sensors).
Ideally suited for mounting of printed circuit boards.
Slots on the base of the enclosure allow for easy wall-mounting.
Knockout on the base can be removed with a screwdriver and used for wire entry.
Molded in ABS plastic (material has a UL94-HB rating).
Choice of (4) square/ rectangle sizes and (3) circle sizes. Stocked in black, grey, and white.
Satin texture finish.
Enclosure features a snap-fit assembly and can be reopened repeatedly as needed. No hardware required.
(4) P.C. board standoffs molded into interior (see drawings for details).
Designed to meet IP30.

Specifications

Size L x W x H	1.77 in x 1.77 in x 0.79 in (45 mm x 45 mm x 20 mm)
Shipping Weight	0.03 lbs (0.01 kg)
UNSPSC	39121301
UPC	623980103082
Material	ABS Plastic
Color	Black
Flame Rating	UL94 HB
IP Rating	IP30
Product Category	Enclosures
Type	Miniature, sensor
Max. P.C. Board Length (mm)	39
Max. P.C. Board Width (mm)	39

Downloads

Datasheet - 1551V11BK

Additional Information

Device	Enclosure
Type	ABS \| Plastic \| Miniature

Discover the 1551V11BK ABS Plastic Miniature Enclosure, perfect for IoT and general applications. Its snap-fit assembly and wall-mount design offer easy installation, while the vented option protects electronics while allowing essential airflow. Ideal for printed circuit boards, this durable black enclosure ensures your devices are safe and accessible.
