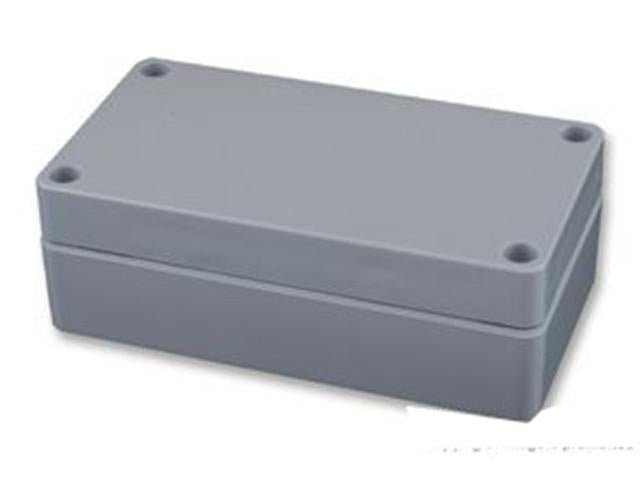

Polycarb Enclosure 120 x 65 x40mm IP66 Grey
Polycarb Enclosure 120 x 65 x 40mm IP66 Grey
Feature(s)
- Ideally suited for mounting printed circuit boards or DIN rail mounted components (see photo features below for details).
- ABS Versions are molded from general purpose material which carries a flammability rating of UL94-HB. For indoor use.
- Polycarbonate versions are UV stabilized for outdoor use. Gray polycarb carries a UL94-5VA rating, while clear and smoked lids carry a UL94V-0 rating.
- Polycarbonate versions are cUL and UL 508A listed (File # E65324). ABS plastic versions are not UL listed.
- Enclosure color is a light gray (RAL 7035).
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water.
- Replaceable gasket is one piece made from high temperature, U.L. listed silicone. Supplied loose inside the enclosure (not pre-installed).
- Polycarb versions are designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68. (Except 1554/55 V size which is 4,4X only)
- ABS Plastic versions are designed to meet IP66.
- Lid is secured with included M4 stainless steel machine screws which are threaded into corrosion resistant bushings for repetitive assembly & disassembly. All hardware is designed to avoid corrosion caused by harsh environments over time.
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws).
- Internal features are maximized for mounting options and vary with size:
- Internal DIN rail mounting tabs molded into most models, except sizes “C” and “D”.
- Threaded (M3) integral brass inserts and/or standoffs (#6 self tapping screws) for P.C. board or inner panel mounting in all but the smallest size (“B”).
- Vertical P.C. card guides (for 1.5 mm thick P.C. boards) are molded in all but the smallest size (“B”).
Downloads
Additional Information
| Model |
1554C2GY |
| Device |
Enclosure |
| Type |
Polycarb | IP66 | Grey |
| Highlights |
Suitable for Outdoor use. Height of Llid = 15mm |
| Size |
120m x 65m x 40mm |
| Base Colour |
Grey |
Protect your electronics with the 1554C2GY Polycarbonate Enclosure, designed for both indoor and outdoor use. With an IP66 rating and UV stabilization, this durable gray enclosure ensures reliable defense against dust, water, and harsh conditions. Its easy mounting options and secure gasketed lid make it perfect for printed circuit boards and DIN rail components, offering peace of mind for your projects.
