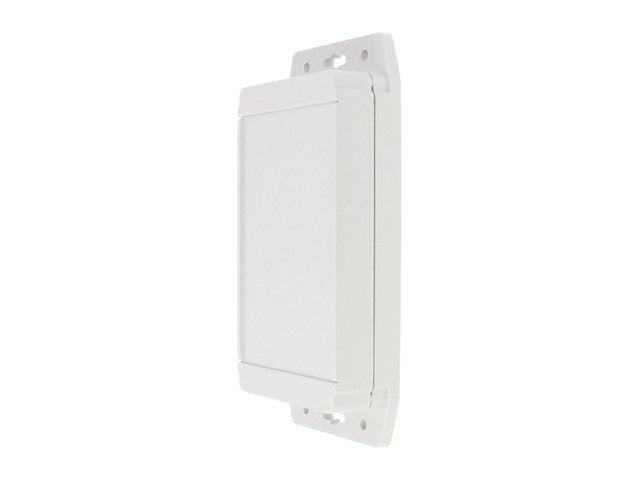

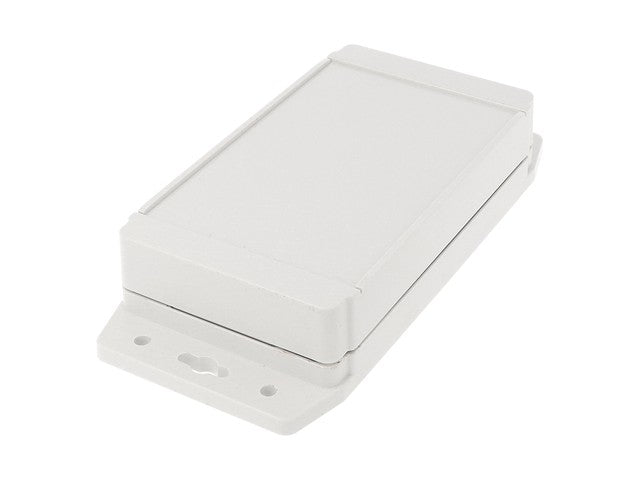

Enclosure Polycarbonate 160 x 91 x 37 (With Lid) mm IP67 Grey Flanged Lid
Features
- Designed for harsh industrial environments or outdoor applications (security, outdoor wireless, controls etc. etc.)
- Ideally suited for mounting printed circuit boards, panels or DIN rail mounted components
- Designed for wall mounting. Interior is secure as lid screws are behind the lid. Can be made more secure if wall mounted with security screws (tamper resistant screws)
- Satin texture finish with smooth recessed surface on lid for a membrane keypad or label
- Standoffs molded in the interior of the lid & enclosure - designed for #4 x 1/4” self tapping screws (our part number 1555TS100)
- Polycarbonate (material carries a UL flammability rating of UL94 5VA @ 3mm) - Recommended for outdoor use
- Color is a light gray (RAL 7035) to help keep heat absorption down
- Gasketed lid with two piece “tongue & groove” construction provides protection against access of oil, dust and water

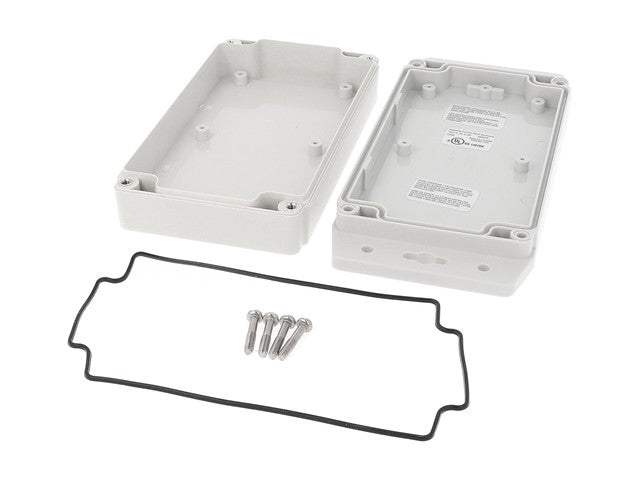

- Gasket is one piece made from high temperature, U.L. listed silicone. Supplied loose inside the enclosure (not pre-installed)
- Designed to meet NEMA Type 4, 4X, 6, 6P, 12 & 13 ratings which meet and exceed IP ratings up to and including IP68
- Polycarbonate version is UL 508A listed (File # E65324)
- Flanged lid is secured with self captivating M4 stainless steel machine screws (included), threaded into integral stainless steel bushings for repetitive assembly & disassembly. All hardware is stainless steel to avoid corrosion caused by dissimilar metals
- Flanged lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
Specifications
| Product Type |
Water-Tight Enclosure |
| Series |
1555J |
| Body Material |
Polycarbonate |
| Gasket Material |
Silicone |
| External Dimensions |
160 x 91 x 37 (With Lid) mm |
| External Length |
160 mm |
| External Width |
91 mm |
| External Height |
37 (With Lid) mm |
| Colour |
Light Grey |
| IP Rating |
IP68 |
| Lid Colour |
Light Grey |
| Flame Rating |
UL94-5VA |
| Protection Features |
Protection against Access of Oil, Dust and Water |
