1556CGY

SKU: 1556CGY

BRAND: Hammond

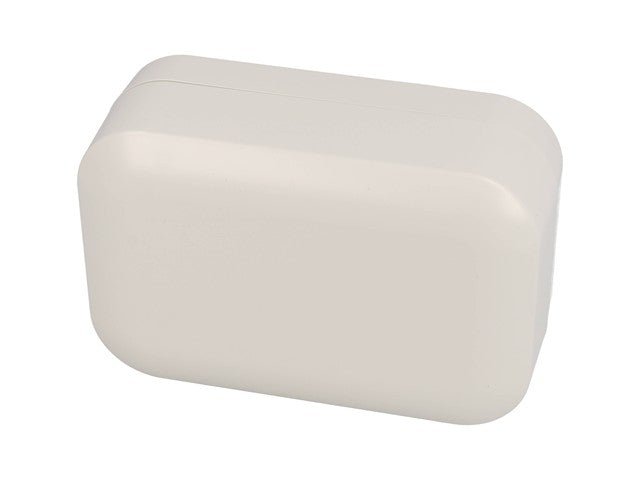

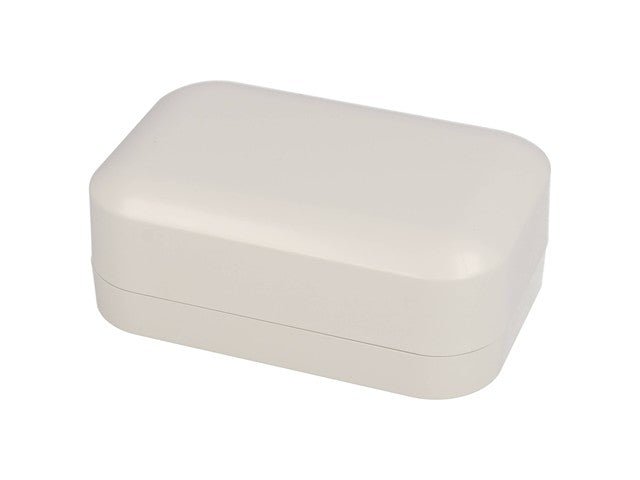

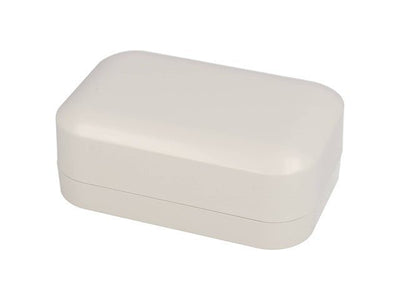

Enclosure FRABS Plastic 80 mm x 120 mm x 45 mm Light Gray IP54 Desktop/Wall Mount/IOT Indoor (Flame Retardant)

FRABS Plastic Light Gray Enclosure

Feature(s)

  • Ideally suited for mounting printed circuit boards, IoT equipment, and other small electronics.

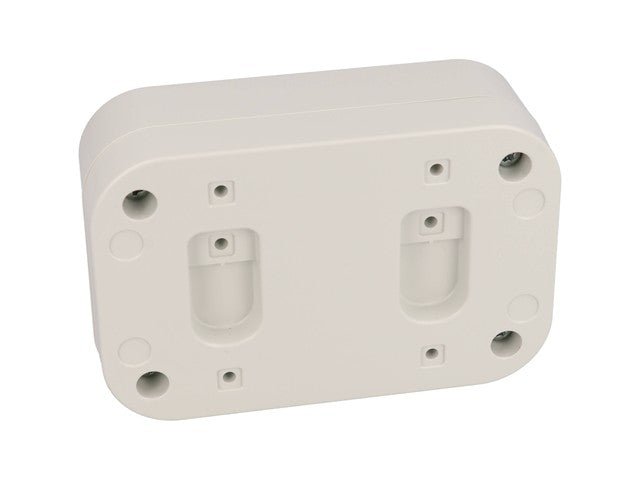

  • Can be used in a tabletop configuration using rubber feet (included) or two different wall-mount configurations using wall mount foot kit (sold separately).
  • Rounded corners and face provide a more modern look.
  • Lap joint construction provides protection against access of dust and splashing water.
  • Available in black, gray, or white flame retardant ABS plastic with light satin texture.
  • Molded from flame retardant material which carries a flammability rating of UL94 V-0.  For indoor use.
  • Designed to meet IP54.

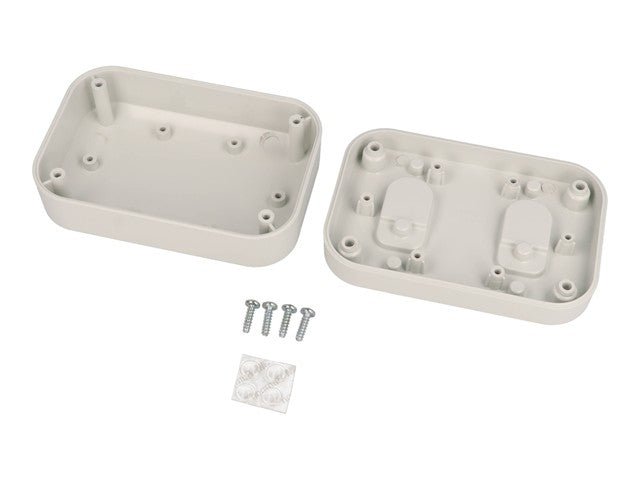

  • Lid hardware and 4x rubber feet included with enclosure. Lid is secured with high strength #6 x 1/2" self-tapping Plastite screws.
  • Aluminum inner panels are available as accessories.  Sold separately.  See table below.

Specifications

Size L x W x H 3.15 in x 4.72 in x 1.77 in
(80 mm x 120 mm x 45 mm)
Shipping Weight 0.22 lbs (0.10 kg)
UNSPSC 39121301
UPC 623980667034
Packaging Type shrink wrap
Material ABS Plastic
Color Light Gray
Flame Rating UL94 V-0
IP Rating IP54
Product Category Enclosures
Max. P.C. Board Length (mm) 111
Max. P.C. Board Width (mm) 71

Downloads

Additional Information

Device Enclosure
Type FRABS | Plastic | Light Gray
