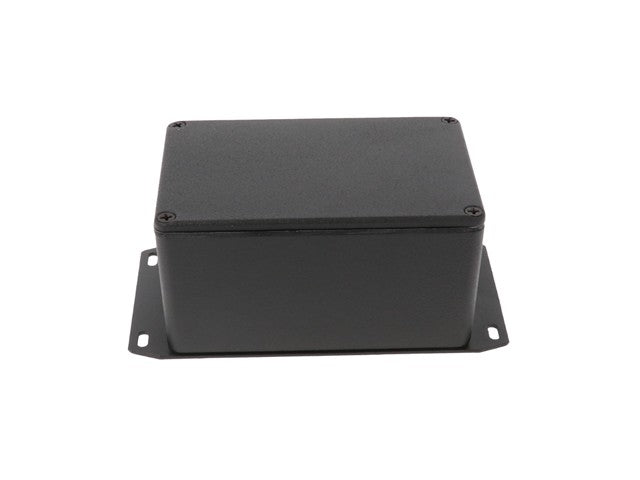

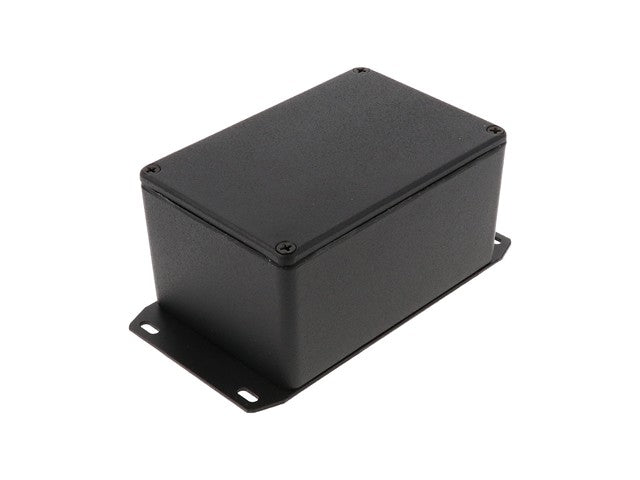

Multipurpose Enclosure • Diecast Aluminium • with Flange • 121x80x55mm • Black
Feature(s)
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure
- Lid screws are exposed for easy enclosure access
- Bottom flange is an aluminum plate, welded onto the base of the enclosure

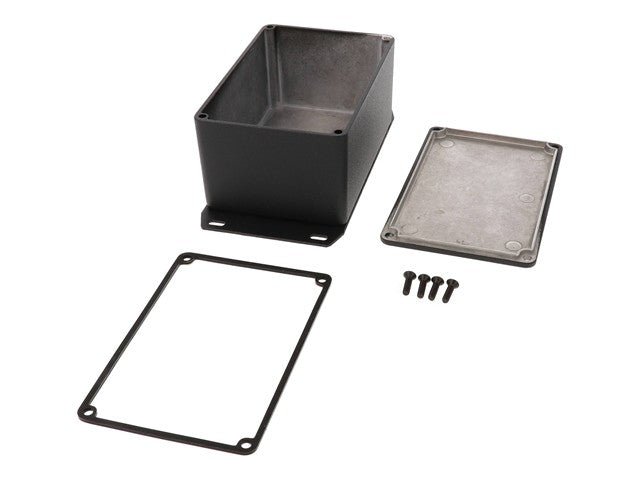

- Lap joint construction with a factory poured silicone rubber gasket around the perimeter of the lid provides protection against access of dust and water
- Silicone rubber gasket remains flexible from -62 to +232ºC
- Unpainted version is vibra finished for a smooth surface with no sharp Edges
- Painted version is painted with tough polyester powder paint for a lasting finish, even after machining. Paint is only applied to the exterior surface
- . Black screws are included to enhance appearance
- Four 6-32 x 1/2” stainless steel machine screws secure lid - into factory tapped holes
- Screws use neoprene "O" rings (included)
- Designed to meet IP65
- Low side wall draft angle (2 degrees or less) for easy P.C. board mounting
- with Flange
Downloads
Additional Information
Group |
Diecast Aluminium Enclosure |
Model |
1590WTFBK |
Device |
Multipurpose |
Body Material |
Diecast Aluminium |
Size |
121mm x 80mm x 55mm |
Base Colour |
Black |
