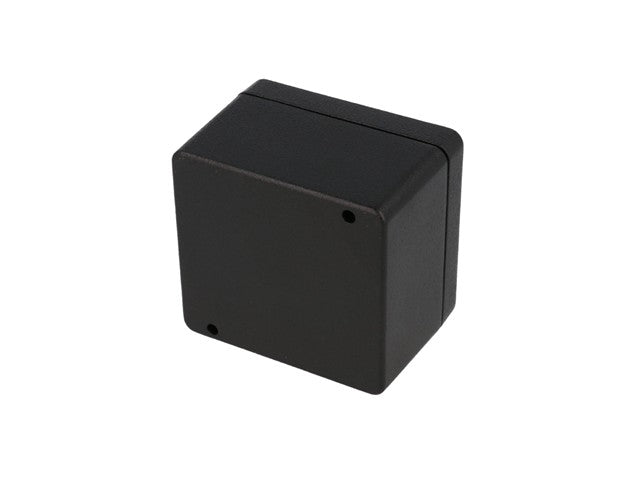

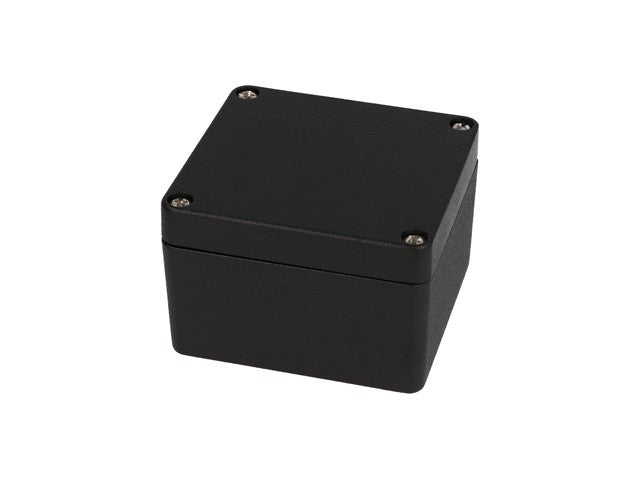

Diecast Aluminium Black 79.6 x 74.6 x 52 mm (With Lid) Watertight Enclosure
Features
- Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure

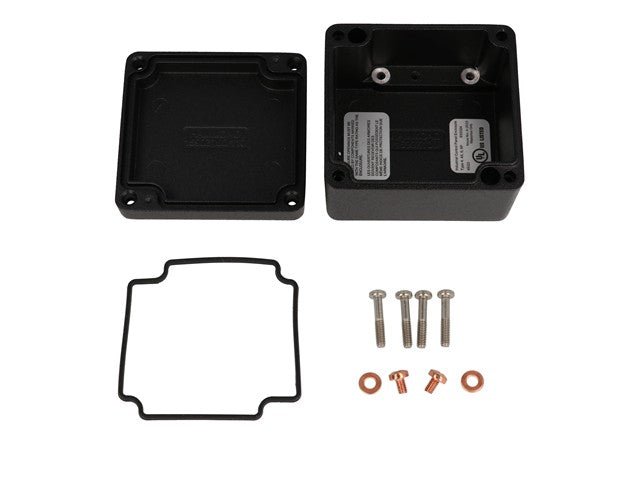

- Two piece “tongue & groove” construction with a replaceable one-piece silicone rubber gasket provides protection against access of dust and water. Gasket supplied loose inside the enclosure (not pre-installed)
- Ideal for repetitive opening and closing
- Four recessed stainless steel machine screws secure lid into tapped holes
- Easy to wall mount using “through box - blind hole” construction, outside of gasket protection
- Lid screws are self captivating (lid holes are threaded with the first installation of lid screws)
- North American Mark of Safety - cUL & UL listed. Certified to Type 4, 4X, 6, 6P
- Painted versions are painted inside and out with a tough powder paint. Choice of textured black or smooth gray (RAL 7001)
- For non-metallic (glass reinforced polyester) versions of these enclosures
Specifications
Product Type |
Diecast Box Enclosure |
Series |
1590Z |
Body Material |
Diecast Aluminium |
External Dimensions |
79.6 x 74.6 x 52 mm (With Lid) |
External Length |
79.6 mm |
External Width |
74.6 mm |
External Height |
52 mm (With Lid) |
Internal Dimensions |
70.51 x 65.74 x 45 mm |
Internal Length |
70.51 mm |
Internal Width |
65.74 mm |
Internal Height |
45 mm |
Colour |
Black |
IP Rating |
IP68 |
Lid Colour |
Black |
Protection Features |
Water-Tight |
