1590Z231GY

SKU: 1590Z231GY

BRAND: Hammond

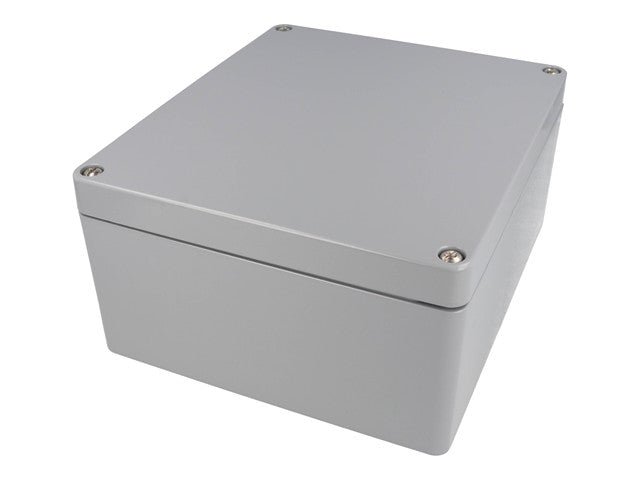

Enclosure Type 4x Diecast Aluminium 200x230x112mm Thick Wall Watertight IP65

Features

  • Rugged, diecast aluminum alloy (tough yet easy to machine), electronic instrument enclosure.
  • Available in natural vibra finish OR in light textured, black powder paint.
  • Unpainted version is vibra finished for a smooth surface with no sharp edges.
  • Painted version is painted with tough satin black polyester powder paint for a lasting finish, even after machining. Black screws are included to enhance the assembled appearance.
  • Lap joint construction protection against access of dust and splashing water. Also provides for improved EMI/RFI shielding. When water-tight gaskets are installed.

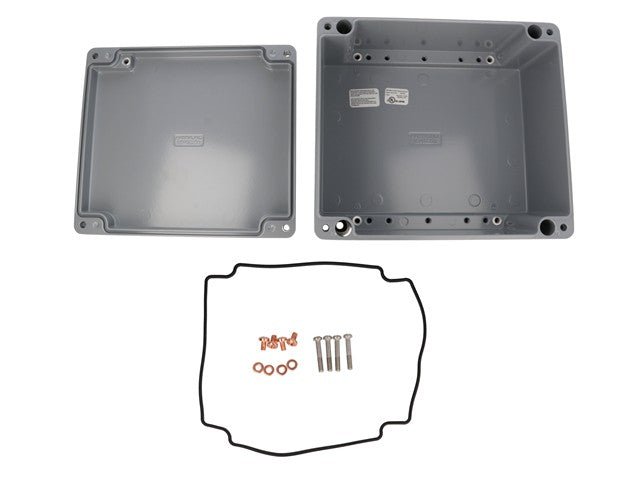

  • Four M3.5 x 0.6 x 12 mm long stainless steel, Philips head, machine screws secure lid - into factory tapped holes.
  • Designed to meet IP 54 without a gasket or IP66 with a gasket. IP67 upgraded gaskets are available.
  • No internal ribs for easy installation of connectors without interference or additional milling.
  • Low side wall draft angle (2 degrees or less) for easy P.C. board mounting.
  • Add 0.16" (4 mm) to enclosure depth for lid

Specifications

  • Size L x W x H: (230 mm x 200 mm x 92 mm)
  • Shipping Weight: 5.43 lbs (2.46 kg)
  • UNSPSC: 39121301
  • UPC: 62398040380
  • REACH Compliant: Yes
  • RoHS Compliant: Yes
  • Material: Aluminum (Die-Cast Alloy)
  • Color: Gray
  • IP Rating: IP68
  • Packaging: shrink wrap
  • Product Category: Enclosures
  • Type: Thick wall, water-tight
  • NEMA Rating: 4, 4X, 6, 6P, 12 & 13
