1591BF2BK

SKU: 1591BF2BK

BRAND: Hammond

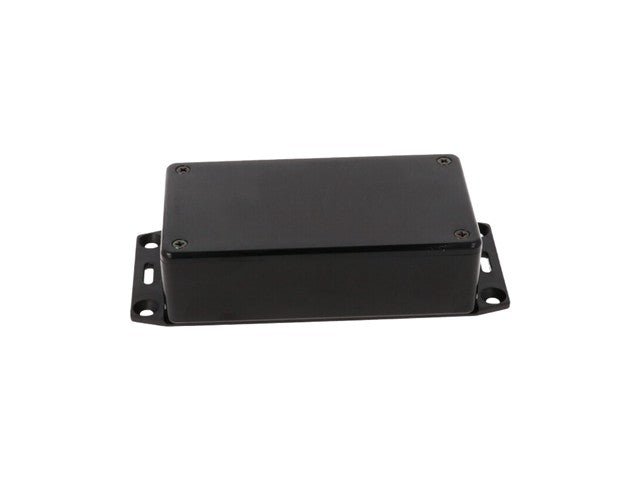

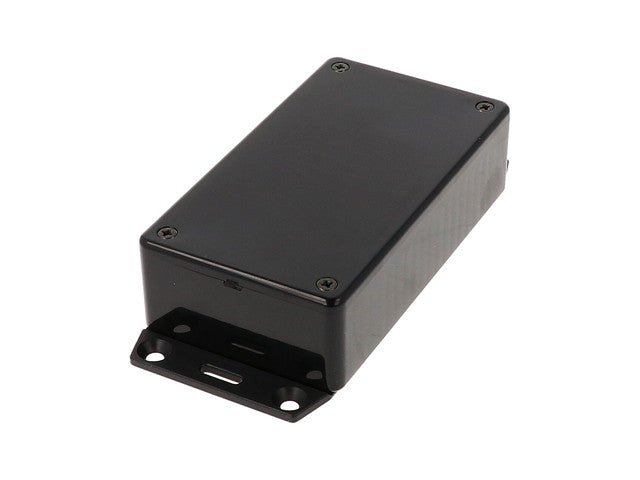

ABS Enclosure 137.4 x 62 x 32.30 (With Lid) mm Black Flanged Bottom

Features

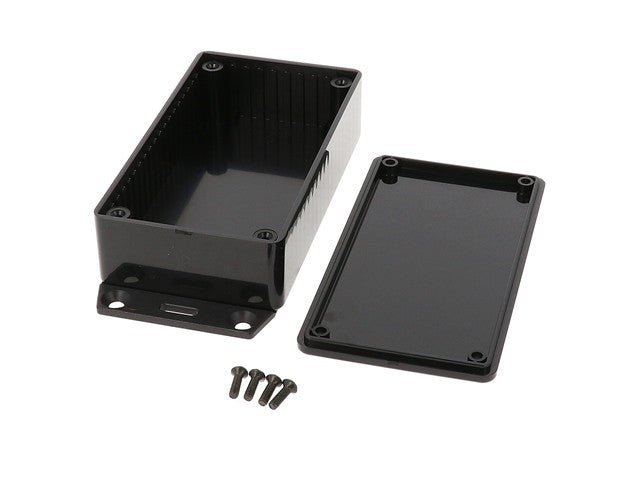

  • Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right)
  • Integral card guides accept 1.5 mm (0.062”) P.C. cards
  • Lap joint construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
  • Economy versions are molded from general purpose (not flame-retardant) plastic
  • On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
  • Economy versions are assembled with self tapping screws into fully plastic posts
  • Black enclosures include black screws, while all others include standard nickel finish screws

Specifications

Product Type General Purpose Flanged Enclosure
Series 1591
Body Material ABS Plastic
External Dimensions 137.4 x 62 x 32.30 (With Lid) mm
External Length 137.4 mm
External Width 62 mm
External Height 32.30 (With Lid) mm
Internal Dimensions 105.78 x 55.78 x 26.9 mm
Internal Length 105.78 mm
Internal Width 55.78 mm
Internal Height 26.9 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94 V-0
Protection Features Flame Retardant
