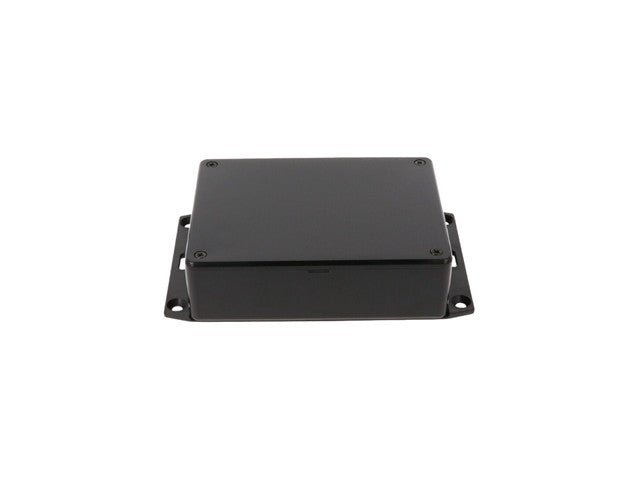

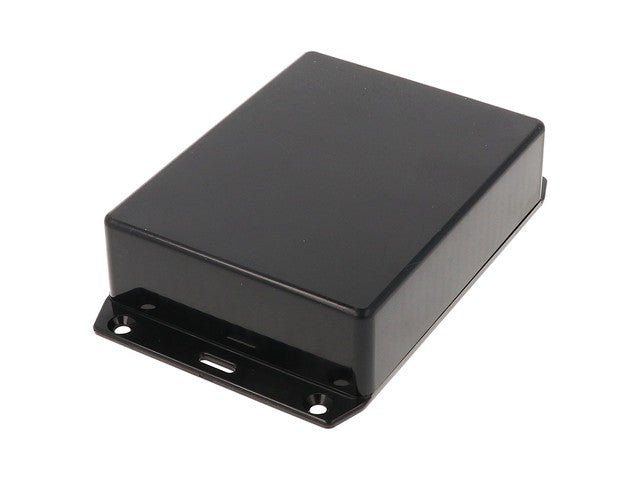

ABS Enclosure Black 146.2 x 93.8 x 33.8 mm (with Lid) with Flang
ABS Enclosure Black
Feature(s)

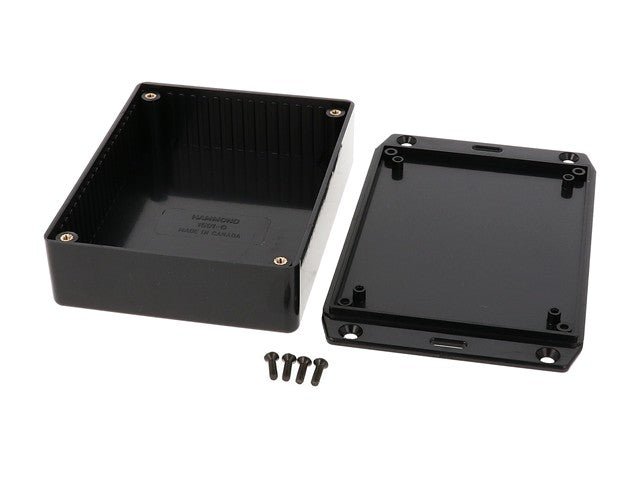

- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right)
- Integral card guides accept 1.5 mm (0.062”) P.C. cards
- Lap joint construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
- Economy versions are molded from general purpose (not flame-retardant) plastic
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
- Economy versions are assembled with self tapping screws into fully plastic posts
- Black enclosures include black screws, while all others include standard nickel finish screws
Specifications
| Series |
1591 |
| Body Material |
ABS Plastic |
| External Dimensions |
146.2 x 93.8 x 33.8 mm (With Lid) |
| External Length |
146.2 mm |
| External Width |
93.8 mm |
| External Height |
33.8 mm (With Lid) |
| Internal Dimensions |
116.26 x 87.36 x 29.9 mm |
| Internal Length |
116.26 mm |
| Internal Width |
87.36 mm |
| Internal Height |
29.9 mm |
| Colour |
Black |
| IP Rating |
IP54 |
| Lid Colour |
Black |
| Flame Rating |
UL94 V-0 |
| Protection Features |
Flame Retardant |
Downloads
Additional Information
| Device |
Enclosure |
| Type |
ABS | Black |
| Highlights |
with Flang |
