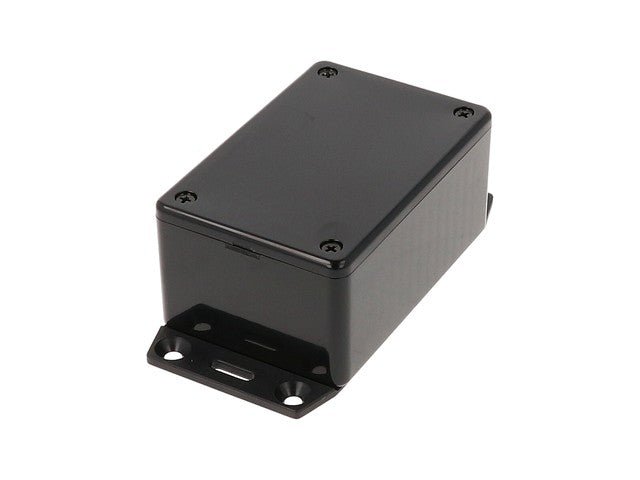

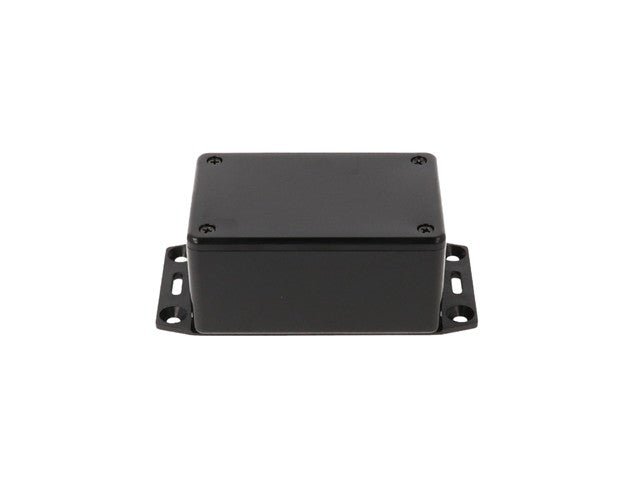

ABS Enclosure 110.2 x 56 x 40.6 mm (With Lid) Flame Retardent ABS Plastic with Bottom Flange in Black
Features

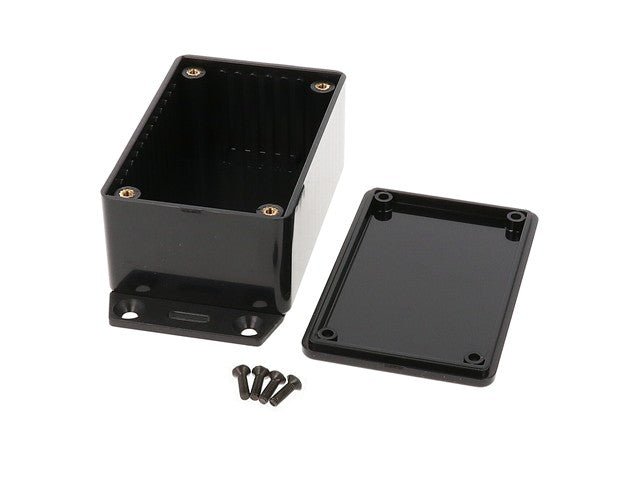

- Ideally suited for vertical mounting of printed circuit boards (internal side walls include molded in card guides - see photo to the right)
- Integral card guides accept 1.5 mm (0.062”) P.C. cards
- Lap joint construction provides protection against access of dust and splashing water
- Designed to meet IP54
- Standard versions are molded from easy to machine flame retardant ABS plastic which carries a UL flammability rating of 94V-0
- Economy versions are molded from general purpose (not flame-retardant) plastic
- On standard versions the lid is secured with M3 x 10 mm Phillips machine screws, threaded into integral brass bushings. Perfect for applications when repetitive assembly and disassembly are required
- Economy versions are assembled with self tapping screws into fully plastic posts
- Black enclosures include black screws, while all others include standard nickel finish screws
Specifications
| Product Type |
General Purpose Flanged Enclosure |
| Series |
1591 |
| Body Material |
ABS Plastic |
| External Dimensions |
110.2 x 56 x 40.6 mm (With Lid) |
| External Length |
110.2 mm |
| External Width |
56 mm |
| External Height |
40.6 mm (With Lid) |
| Internal Dimensions |
78.71 x 51.71 x 34.9 mm |
| Internal Length |
78.71 mm |
| Internal Width |
51.71 mm |
| Internal Height |
34.9 mm |
| Colour |
Black |
| IP Rating |
IP54 |
| Lid Colour |
Black |
| Flame Rating |
UL94 V-0 |
| Protection Features |
Flame Retardant |
