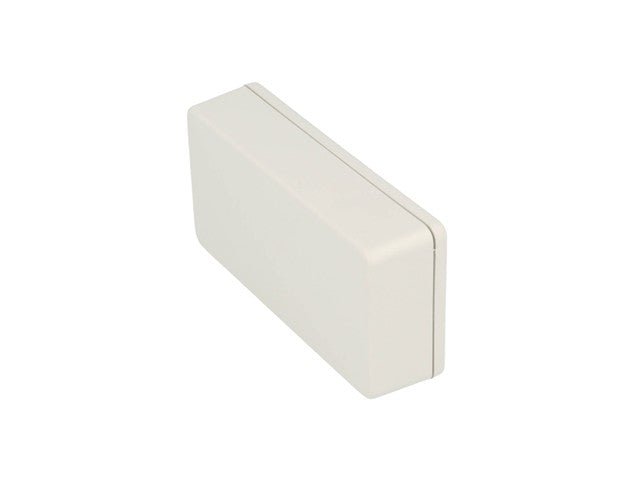

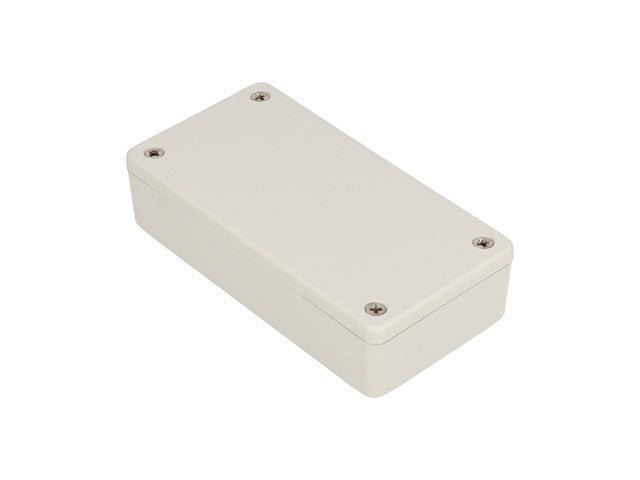

ABS Flame Retardent Enclosure Grey 100 x 51 x 22mm IP54
ABS Flame Retardent Enclosure
Feature(s)
- Ideally suited for mounting printed circuit boards horizontally.
- Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type which includes P.C.board standoffs in the lid and enclosure PLUS includes card guides.
v
- Strong tongue and groove lid to box construction provides protection against access of dust and splashing water.
- Designed to meet IP54.

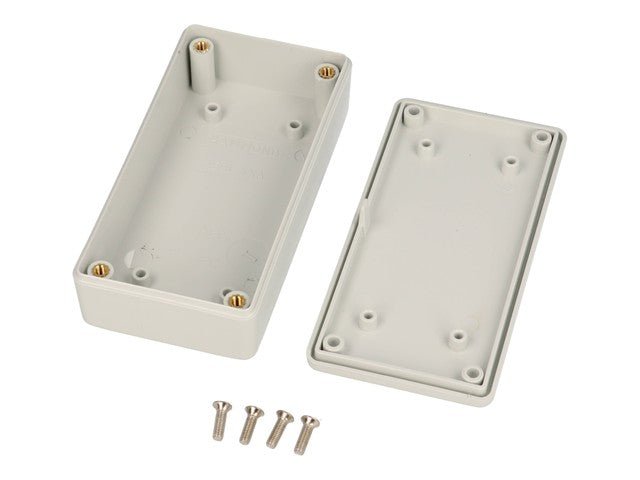

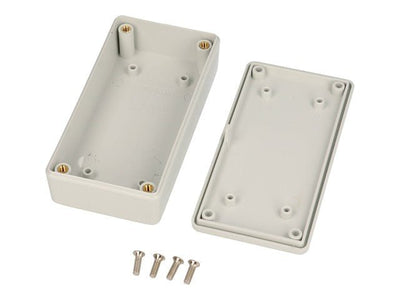

- Lid and box both contain - molded in PC board standoffs.
- Standard black and gray versions molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
- Transparent blue and all economy versions are molded from general purpose (not flame-retardant) plastic.
- Stocked in satin texture black and grey.
- On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
- Economy versions are assembled with self tapping screws into fully plastic posts.
Downloads
Additional Information
| Device |
Enclosure |
| Type |
ABS | Flame | Retardent |
| Body Material |
ABS Flame |
| Size |
100m x 51m x 22mm |
| Base Colour |
Grey |
