1591XXEFLBK

SKU: 1591XXEFLBK

BRAND: Hammond

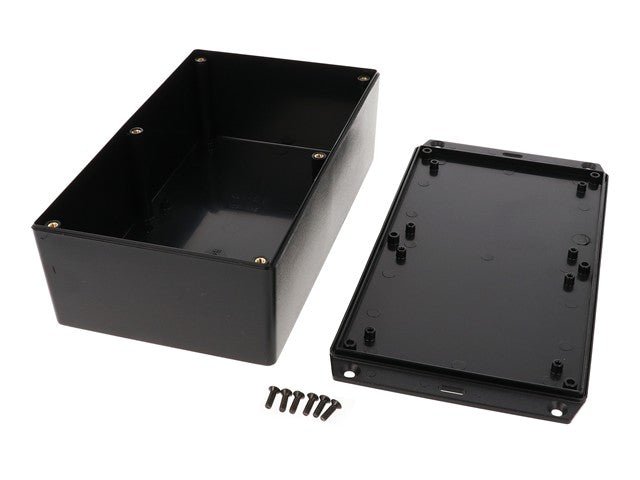

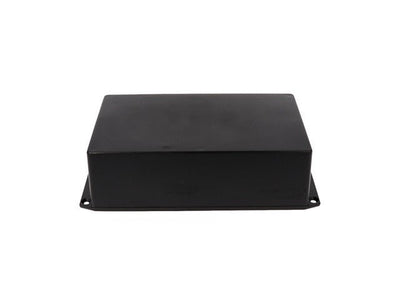

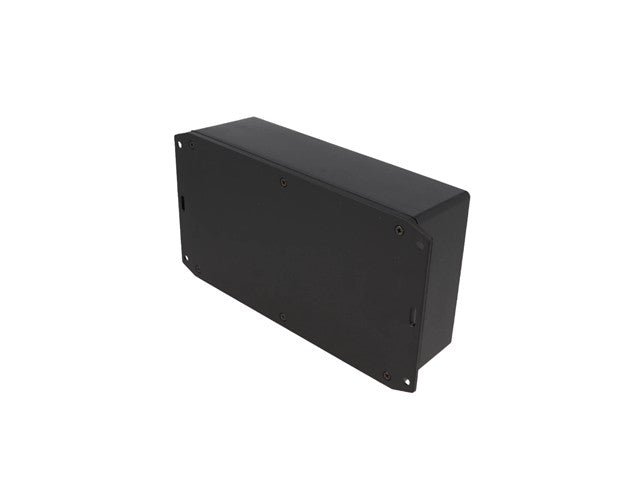

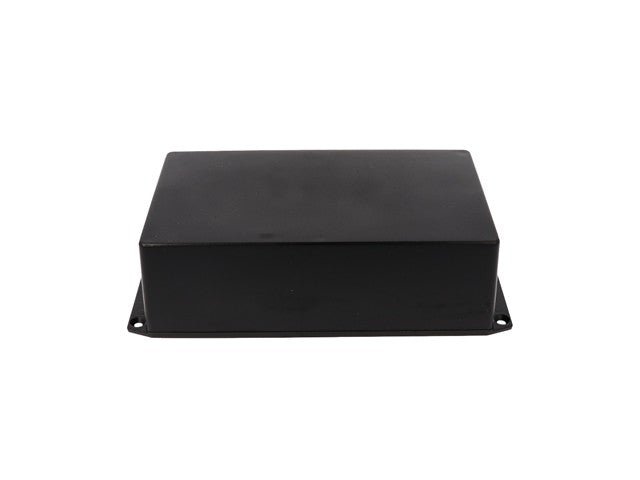

ABS Enclosure 217.13 x 113.41 x 61 mm (With Lid) Flanged Lid Black IP54

Features

  • Ideally suited for mounting printed circuit boards horizontally
  • Internal sides of enclosure are smooth for easy connector installation except for the largest enclosure. 1591XXF. 1591XXF size is a universal type which includes P.C.board standoffs in the lid and enclosure PLUS includes card guides
  • Strong tongue and groove lid to box construction provides protection against access of dust and splashing water
  • Designed to meet IP54
  • Lid and box both contain - molded in PC board standoffs
  • Standard black and gray versions molded from easy to machine, flame retardant ABS plastic (material carries a UL flammability rating of 94V-0)
  • Transparent blue and all economy versions are molded from general purpose (not flame-retardant) plastic
  • Stocked in satin texture black and grey
  • On standard versions, the lid is secured with M3 x 10 mm Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required
  • Economy versions are assembled with self tapping screws into fully plastic posts
  • Black and transparent blue enclosures include black screws, gray enclosures include nickel plated screws

Specifications

Product Type General Purpose Flanged Enclosure
Series 1591XX
Body Material ABS Plastic
External Dimensions 217.13 x 113.41 x 61 mm (With Lid)
External Length 217.13 mm
External Width 113.41 mm
External Height 61 mm (With Lid)
Internal Dimensions 185.65 x 109.16 x 57 mm
Internal Length 185.65 mm
Internal Width 109.16 mm
Internal Height 57 mm
Colour Black
IP Rating IP54
Lid Colour Black
Flame Rating UL94 V-0
Protection Features Flame Retardant
