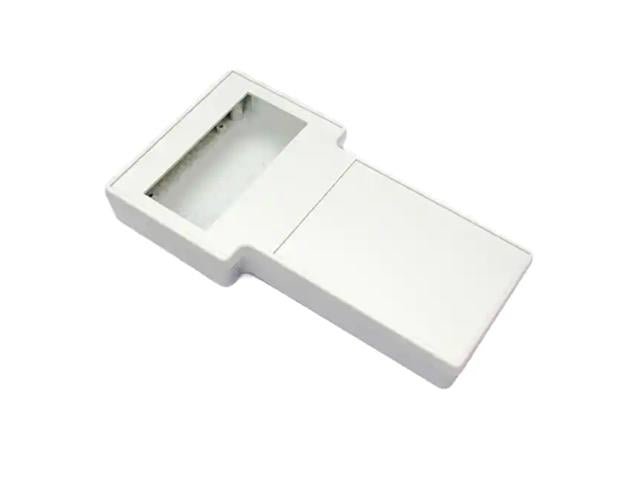

T-Display type Hand Held Enclosure • ABS Plastic • with open Display Insert • Grey
Feature(s)
- Perfect for instrument or mobile data enclosures requiring a keypad and display.
- Available with either a solid display area or an opening with a clear lens
- Solid display area is 122 mm x 85 mm (4.8” x 3.4”) and will accommodate display boards up to 118 mm x 60 mm (4.6” x 2.37”).
- Clear polycarbonate lens 102 mm x 45 mm (4.0” x 1.77”) and a plain mylar mask kit allows for installation of a wide variety of display boards with the protection of the clear lens and dressed by the mylar frame.
- The lens fits snugly into the case and provides protection from dirt and dust.
- Molded from flame retardant ABS plastic, choice of black or grey (material carries a UL flammability rating of 94V-0).
- The back of the case has been designed to accept a magnetic strip or “hook & loop” fabric mounting tab (see accessories below).
- The display area has been insert tooled in order to provide the capability of custom molding a low-cost display area to specific requirements.
Specifications
- Size L x W x H : 130 mm x 234 mm x 34 mm
- Shipping Weight : 0.52 lbs (0.24 kg)
- UNSPSC : 39121301
- UPC : 62398056038
- REACH Compliant : Yes
- RoHS Compliant : Yes
- Material : ABS Plastic
- Color : Light Gray
- Flame Rating : UL94 V-0
- IP Rating : IP54
- Packaging : shrink wrap
- Product Category : Enclosures
- Type : Hand held, T-case
Downloads
Additional Information
| Model |
1592ETCDGY |
| Device |
Hand Held |
| Type |
T-Display |
