ABS Enclosure 140X66X28MM Black
ABS Enclosure 140x66x28mm Black
Overview

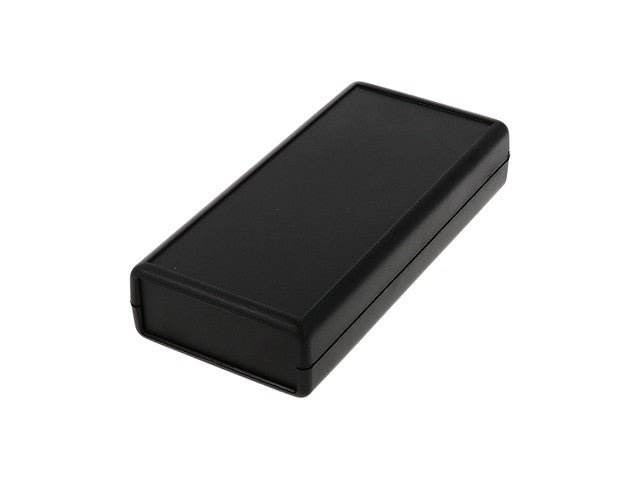

Hand Held Instrument Case

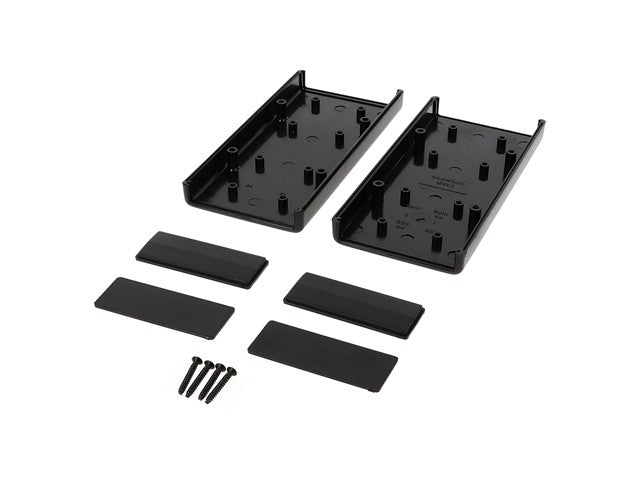

The Hammond 1593 Series is a handheld electronic enclosure, ideally suited for mounting printed circuit boards (PCBs). The enclosure is ergonomically designed for a comfortable fit in the users hand and has a two piece lap joint construction which provides IP54 protection against dust and splashing water. These instrument cases are moulded in black or grey general purpose ABS plastic and are secured with self tapping screws.
Feature(s)
- Electronic instrument enclosure, ideally suited for mounting printed circuit boards
- Ergonomically designed for a comfortable fit into the user's hand
- Recessed top for membrane display or pad
- Units with battery door use a long life three snap door
- Lap joint construction provides protection against dust accumulation and splashing water
- Moulded in grey or black general purpose ABS plastic with a satin texture
- Enclosure is secured with self tapping screws
Note
- Instrument cases with one panel include a battery compartment for 1 x PP3 or 2 x AA batteries.
Specifications
- Body Material : ABS
- External Length : 140 mm
- External Width : 66 mm
- External Height : 28 mm
- External Dimensions : 140 x 66 x 28mm
- Colour : Black
- Series : 1593
Additional Information
| Device |
Enclosure |
| Type |
ABS | Black |
Discover the Hammond 1593XBK handheld instrument case, expertly crafted from durable ABS plastic for lasting protection. Its ergonomic design ensures a comfortable grip, while the IP54-rated construction keeps your PCB safe from dust and splashes. Ideal for electronic devices, this sleek, black enclosure combines functionality with style, making it a must-have for any DIY enthusiast or professional.
