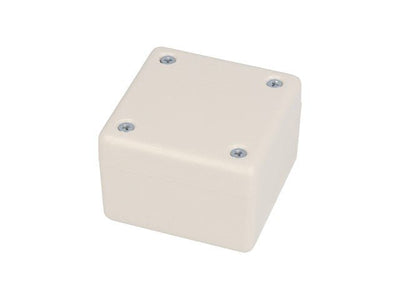

1594ASGY - Plastic Enclosures - 623980016306

1594ASGY

Name: 1594ASGY - Communica [Part No: 1594ASGY]
Brand: Hammond
SKU: 1594ASGY
Price: 138 ZAR
Availability: InStock

SKU: 1594ASGY

BRAND: Hammond

R 158.70_{(inc VAT)}
R 138.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Polystyrene Plastic

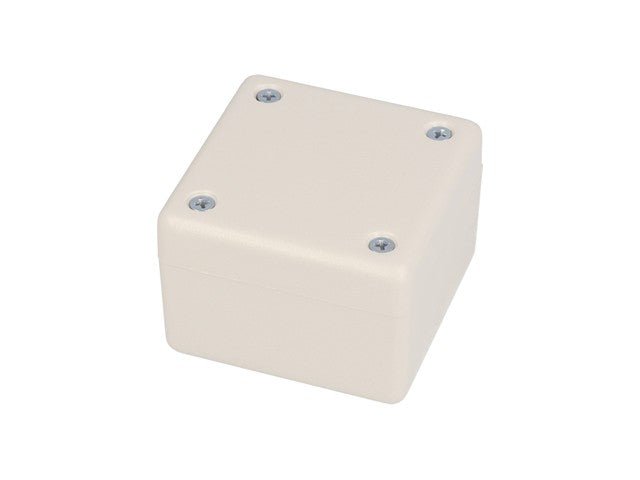

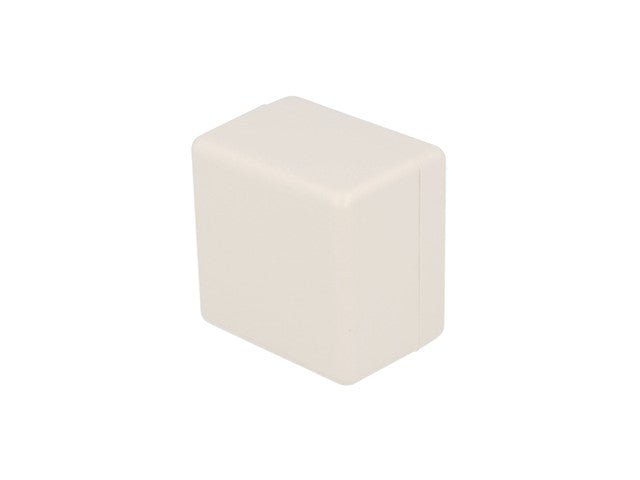

ABS Enclosure 56X56X40 Grey Heavy Duty

Polystyrene Plastic Heavy Duty Enclosure

Feature(s)

Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
Standard versions from flame retardant ABS plastic (carries a UL flammability rating of 94V-0).

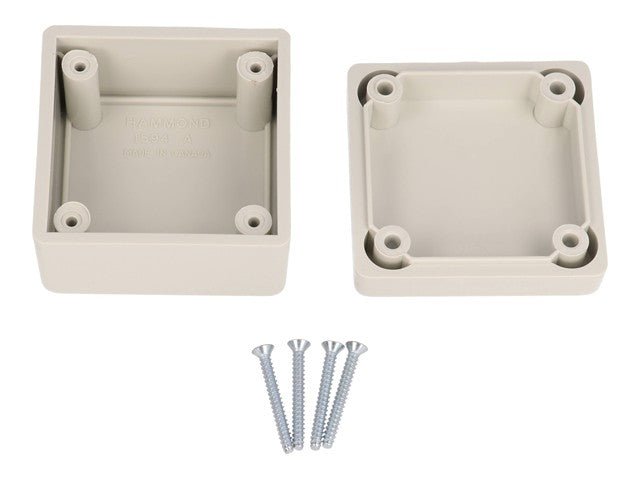

On standard and water-tight versions, countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Phillips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly required.
Economy version is molded in general purpose ABS plastic.
Economy version utilizes self tapping screws into plastic posts (no brass inserts).
Standard and economy versions are rated IP54, but can be upgraded to IP66 with gaskets and screws with o-rings.
Water-tight versions are rated IP66.
Stocked in black and grey with matte textured finish.
For EMI/ RFI shielded versions, try “1594RFI” or “1594R.”

Specifications

Size L x W x H	2.2 in x 2.2 in x 1.1 in (56 mm x 56 mm x 28 mm)
Shipping Weight	0.11 lbs (0.05 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Light Gray
Flame Rating	UL94 HB
IP Rating	IP54
Product Category	Enclosures
Type	Thick wall, general purpose

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Polystyrene Plastic \| Heavy Duty

Discover the 1594ASGY Heavy Duty ABS Enclosure, designed for durability and protection of your electronic components. With its robust .13" thick walls and IP54 rating, this enclosure ensures reliable performance in demanding environments. Perfect for circuit board mounting, it features a secure, countersunk lid for easy access and repetitive assembly. Elevate your project with this rugged, versatile solution in a sleek light gray finish.
