1594DWBK - Plastic Enclosures - 623980564319

1594DWBK

Name: 1594DWBK - Communica [Part No: 1594DWBK]
Brand: Hammond
SKU: 1594DWBK
Price: 325 ZAR
Availability: InStock

SKU: 1594DWBK

BRAND: Hammond

R 373.75_{(inc VAT)}
R 325.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: IP54 ABS Plastic

Polystyrene Enclosure 132MM X 66MM X 43 MM Black Water-Tight

Black Watertight Polysty Enclosure

Feature(s)

Rugged electronic instrument enclosures, ideally suited for mounting printed circuit boards.
Heavy duty, thick wall design with an average wall thickness of .13” (3.3 mm).
Also suited for vertical or horizontal mounting of printed circuit boards (using optional P.C. card guides - see accessories below).
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Interior of each enclosure part is specially masked and sprayed with an RFI/EMI copper conductive coating (see photo above).
Coating manufacturer specifies an attenuation of more than 75 db from 1 Mhz. to 1 Ghz.
Designed to meet IP54.

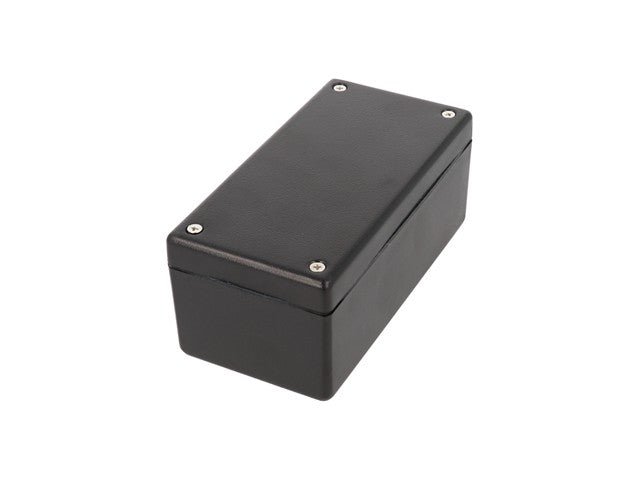

Countersunk lid is secured with four M3 x 0.5 - 0.71” (18 mm) long, Philips machine screws threaded into integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Stocked in black with matte textured finish.

Specifications

Size L x W x H	5.2 in x 2.6 in x 1.7 in (132 mm x 66 mm x 43 mm)
Shipping Weight	0.31 lbs (0.14 kg)
UNSPSC	39121301
UPC	623980564319
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP65
Product Category	Enclosures
Type	Thick wall, water-tight

Downloads

Datasheet

Additional Information

Device	Enclosure
Type	Black \| Watertight \| Polysty

Discover the robust 1594DWBK polystyrene enclosure, designed for durable protection of your electronic components. With a watertight, IP65 rating and flame-retardant ABS construction, it ensures reliable performance in any environment. Ideal for mounting PCBs, its heavy-duty design offers easy assembly and disassembly, making it perfect for your project needs.
