1598REBK - Plastic Enclosures - 623980797397

1598REBK

Name: 1598REBK - Communica [Part No: 1598REBK]
Brand: Hammond
SKU: 1598REBK
Price: 790 ZAR
Availability: InStock

SKU: 1598REBK

BRAND: Hammond

R 908.50_{(inc VAT)}
R 790.00_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: Enclosures

Type: Plastic Enclosures

Category: Instrument Enclosure, Polystyrene Plastic

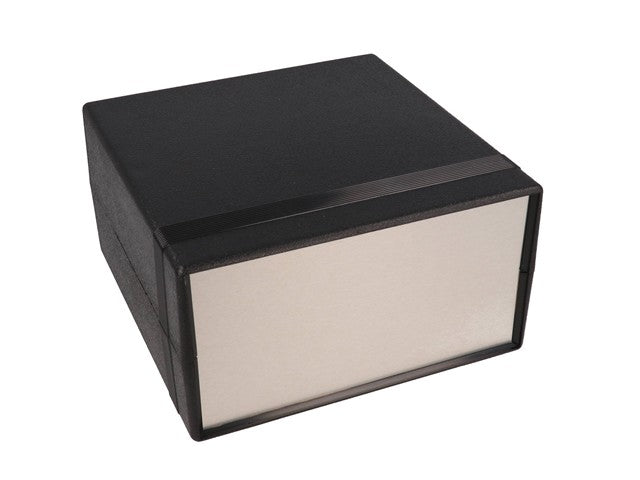

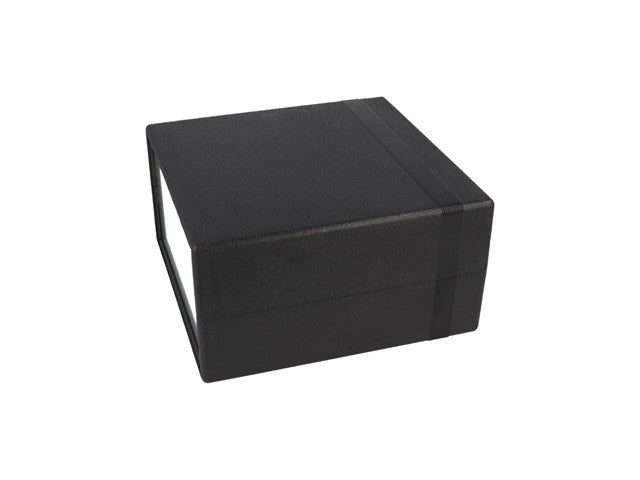

Black Shielded Enclosure160X160X86

Flame Retardent ABS Plastic Instrument Enclosure

Feature(s)

Desk top electronic instrument enclosure, ideally suited for mounting printed circuit boards.
Molded from flame retardant ABS plastic (material carries a UL flammability rating of 94V-0).
Designed to meet IP54.

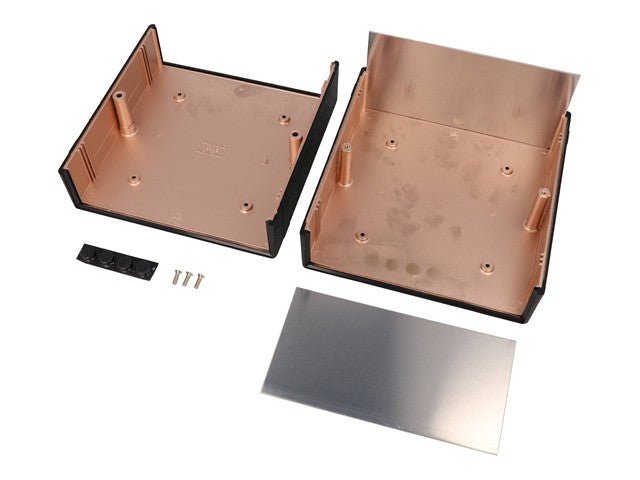

Two sets of vertical 1.5 mm (0.062”) P.C. board guides are molded into case halves front and rear.
Front and rear panels are 1.6 mm (0.064”) brushed aluminum with protective paper on one side.
Enclosure halves are secured with M3 x 0.5” x 10 mm (0.39”) Phillips machine screws threaded into tapped integral brass bushings. Perfect for applications with repetitive assembly and disassembly are required.
Integral horizontal P.C. card mounts on Eurocard centers.

Specifications

Size L x W x H	6.3 in x 6.3 in x 3.38 in (160 mm x 160 mm x 86 mm)
Shipping Weight	0.95 lbs (0.43 kg)
Packaging Type	shrink wrap
Material	ABS Plastic
Color	Black
Flame Rating	UL94 V-0
IP Rating	IP54
Product Category	Enclosures
Type	Instrument, EMI/RFI Shielded
Max. P.C. Board Length (mm)	143.58
Max. P.C. Board Width (mm)	148.44

Downloads

Datasheet - 1598REBK

Additional Information

Device	Enclosure
Type	Flame Retardent \| ABS Plastic \| Instrument

Discover the 1598REBK Black Shielded Enclosure, expertly crafted from flame retardant ABS plastic for superior safety and durability. This versatile, IP54-rated enclosure is ideal for securely mounting your printed circuit boards, ensuring reliable performance in any electronic application. With its sleek brushed aluminum panels and easy assembly features, enhance your project efficiency and protect your valuable components today.
