AIRLIVE AIRCON SENSOR SI-110

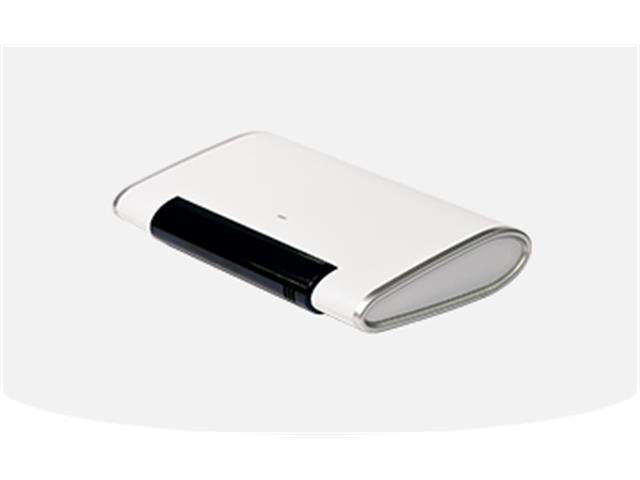

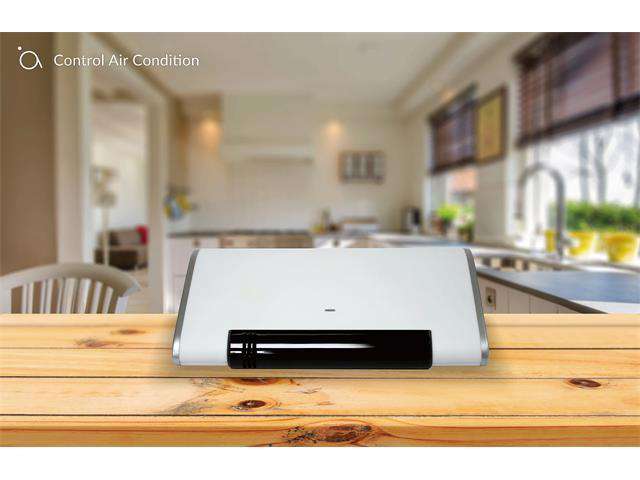

Make your life more easy and automatic. The AirLive SI-110 IR Controller is a powerfull device which lets you control your IR device ( Air Condition) even when you are not at home. With its battery power it can placed in almost any locations as long as it can see your IR device. With its Z-Wave Plus technology it can operate perfectly with the SG-101 Gateway.

• Z-Wave Plus
• IR Range Max. 6 Meter
• Temperature Sensor inside
• Lower power consumption
• AES 128 bit Z-wave encryption
• USB or 2x AA battery
• Maximun To 32 Keys For Self Customizing
• Low Battery indication
• Wall Mountable

• Model : SI-110 IR Controller
• Z-Wave Standard : Z-wave plus
• Z-Wave Frequency : CE：868.40 MHz, 869.85 MHz
• FCC：908.40 MHz, 916.00 MHz
• Transmission distance : 100m (open space), 40m (indoor)
• Power : USB Power DC 5V 1A
• Alkaline Batteries AA x 2pcs
• Temperature Measurement : Measurable range : 0°C ~ 40°C / 32°F ~ 104°F
• Report resolution : 0.5 Degree C / 0.5 Degree F
• External IR Port : 1
• LED Indicator : 1 Red/Green LED
• Dimension and Environment
• Dimensions : 128(L) x 78(W) x 22(H) mm
• Weight : 84g (Excluding Batteries)
• Operating Temperature : 0 ~ 40° C
• Storage Temperature : -10 ~ 50° C
