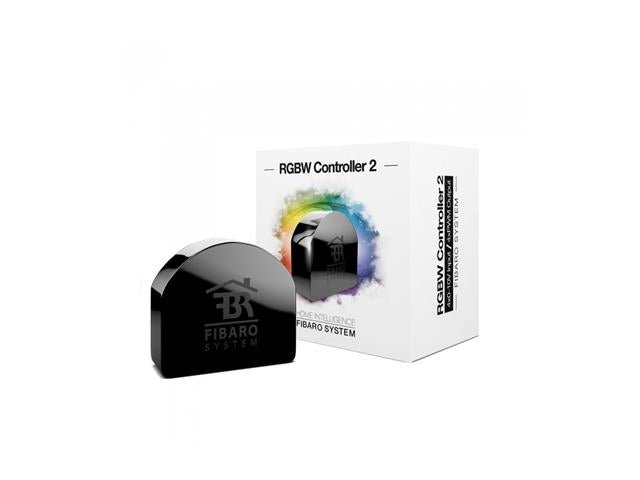

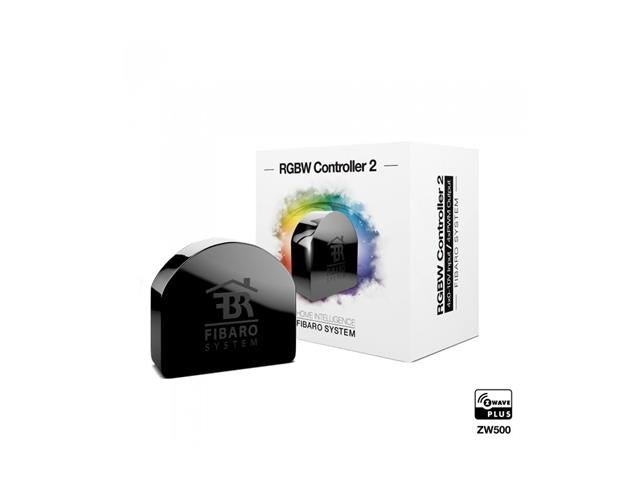

Fibaro LED Light Controller 2, Compatible with RGB/RGBW LEDS & 12-24V Light Sources & with Z Wave Plus, 4 x I/P 0-10V (Configurable Pull-up) or Binary, 4 x O/P : PWM 244Hz
RGBW Controller 2 ZW5
Features
- PWM output signal - control LED, RGB, RGBW, halogen lights and other resistive loads
- Controlled devices can be supplied with 12 or 24 V DC
- Inputs support momentary switches / switches and 0-10 V analog sensors
- Measure active power and energy consumed by the load
- Z-Wave Plus
Specifications
- Power supply: 12/24V DC ±10%
- Rated load current: 6A for channel,12A total for all outputs
- Power output: 144W combined for 12V, 288W combined for 24V
- Inputs: 4 inputs, 0-10V (configurable pull-up) or binary
- Outputs: 4 outputs, PWM
- PWM frequency: 244Hz
- Maximum length of wires: 2m
- Operating temperature: 0–40°C (32–104°F)
- Storage temperature: -40–60°C (-40–140°F)
- Radio protocol: Z-Wave (500 series chip)
- Radio frequency: 868.4 / 869.85 MHz EU
- Transmit power: EIRP max. +2dBm
- Range: up to 50m (164 ft) outdoors, up to 40m (131 ft) indoors (depending on terrain and building structure)
- Recommended wire cross-section area: 0.2–2.0mm2 (24–14 AWG)(depending on load current)
- Dimensions (Length x Width x Height): 42.35 x 36.90 x 17.5 mm(1.67" x 1.5" x 0.6")
- Compliance with EU directives: RoHS 2011/65/EURED 2014/53/EU
Downloads
Additional Information
|
Device |
Controller |
|
Type |
RGBW | 2 ZW5 |
