Physical Characteristics

• Dimensions: 93 × 62 × 35 mm (3.7 × 2.4 × 1.4 in)
• Weight: 156 g (5.5 oz)
• Power Cable: Included

Input Specifications

• Rated Voltage: 100–240 V AC, 50/60 Hz
• Input Current: 0.75 A Max.

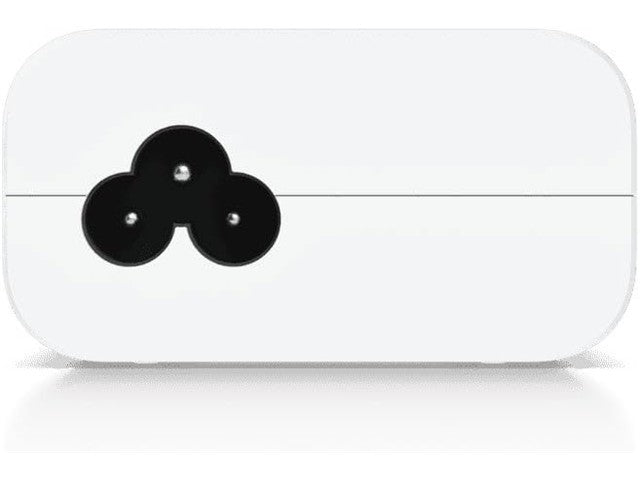

• AC Connector: IEC-320 C6
• Inrush Current: < 100 A peak at 26°C

Output Specifications

• Output Voltage: 48 V DC @ 0.65 A
• Efficiency: 87%
• Switching Frequency: 70 kHz Max.
• Output Ripple: 1% Max.
• Line Regulation: ≤ 3%
• Load Regulation: ≤ 5%

Network & Connectivity

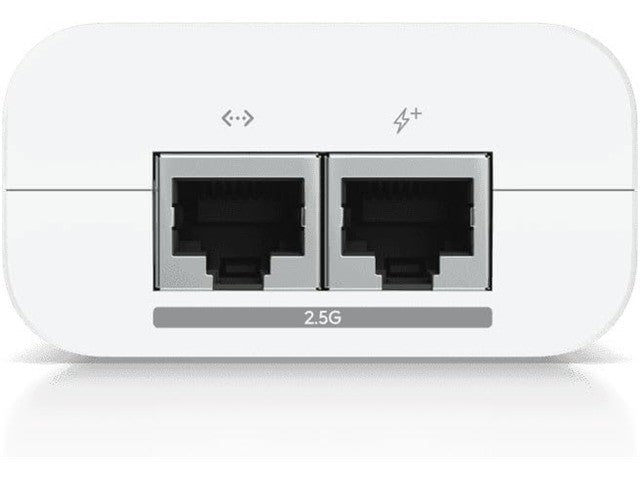

• Data In / PoE Port: RJ45 Shielded Socket
• Gigabit LAN Port: Yes

PoE Powering

• 2-Pair Powering: Pins 4, 5 (+) and 7, 8 (-)

Surge & Protection

• Clamping Protection: 11 V Data, 60 V Power
• Surge Protection: Differential and Common Mode
• Max. Surge Discharge: 1500 A (8/20 μs) Power
• Peak Pulse Current: 36 A (10/1000 μs) Data
• Response Time: < 1 ns
• Shunt Capacitance: < 5 pF Data

Environmental

• Ambient Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Ambient Storage Temperature: -30°C to 70°C (-22°F to 158°F)
• Ambient Operating Humidity: 10% to 95% Non-Condensing

Compliance & Certifications

• NDAA Compliant: Yes
• Certifications: CE, FCC, IC, UL, CCC
