This Development Board Features a Powerful ESP32-C3 CHP which is a Single-Core WI-FI and Bluetooth 5(LE) Microcontroller SOC, Based on the Open-Source RISC-V Architecture

ESP32 Super Mini Development Board

Overview

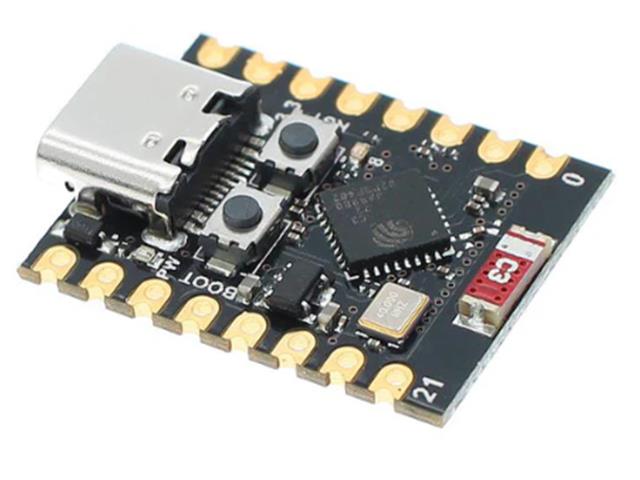

The ESP32 SuperMini is an IoT mini development board based on the Espressif ESP32-C3 WiFi/Bluetooth dual mode chip. ESP32-C3 is a 32-bit RISC-V CPU that includes an FPU (floating point unit) that can perform 32-bit single precision operations and has powerful computing power. It has excellent RF performance and supports IEEE 802.11 b/g/n WiFi and Bluetooth 5 (LE) protocols. It is equipped with interfaces including 11 digital I/Os that can be used as PWM pins and 4 analog I/Os that can be used as ADC pins. It supports four serial interfaces: UART, I2C, and SPI. There is also a small reset button and a boot loader mode button on the board.

Features

ESP32-C3 Powerhouse: Equipped with the ESP32-C3, a single-core processor known for its efficiency and versatility. Offers reliable WiFi connectivity (802.11b/g/n) and Bluetooth Low Energy (BLE) for seamless communication.
Compact Design: The SuperMini boasts a miniaturized form factor, making it ideal for projects with limited space requirements. Perfect for wearables, IoT devices, and any application where size matters.
Low Power Consumption: Engineered for energy efficiency, extending battery life for battery-powered applications. An excellent choice for projects requiring long-term, continuous operation.
Versatile I/O Options: Despite its size, the SuperMini provides a range of GPIO, UART, I2C, I2S, SPI, PWM, and ADC interfaces for diverse project needs.
Easy Development: Compatible with Espressif's ESP-IDF and Arduino IDE for a streamlined development process. Access a vibrant and supportive community for assistance and shared knowledge.
Integrated Security: Leverage hardware-based security features to ensure data integrity and device protection.
Expandability: Designed with expansion in mind, allowing users to extend functionality with additional modules or peripherals.

Specifications

Input Voltage: 3.3-6V on 5V pin
CPU: ESP32-C3, 32-bit RISC-V single core processor, running at frequencies up to 160 MHz
WiFi: 802.11b/g/n protocol, 2.4GhHz, supports Station mode, SoftAP mode, SoftAP+Station mode, hybrid mode
Bluetooth 5.0
Ultra low power consumption: Deep sleep power consumption is about 43 μΑ
Memory: 400KB SRAM, 384KB ROM with built-in 4MB flash
Chip model: ESP32C3FN4
Ultra small size: as small as the thumb (22.52x18mm) in a classic shape, suitable for wearable devices and small projects
Reliable security features: Encryption hardware accelerator supporting AES-128/256, hashing, RSA, HMAC, digital signature, and secure boot

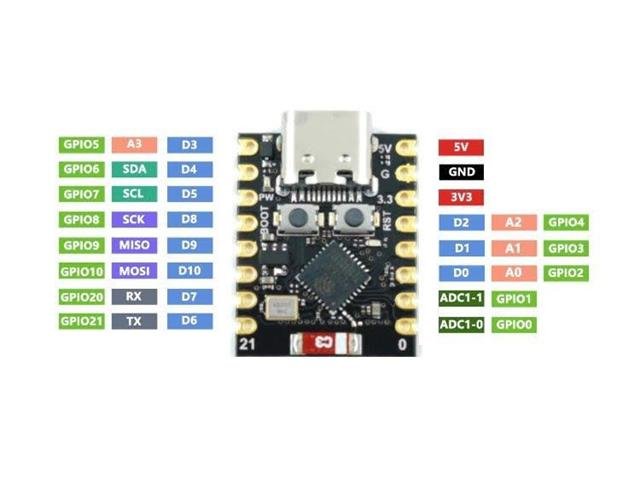

Pin Usability: 1xI2C, 1xSPI, 2xUART, 11xGPIO (PWM), 4xADC
On-board blue LED light: GPIO8 pin
Arduino IDE Board: ESP32C3 Dev Module

To upload code on the Arduino IDE:

Select "ESP32C3 Dev Module"
Press "boot" button
Connect the SuperMini to your computer
Release "boot" button
Upload your code

Additional Information

Device	Development Board
Type	ESP32 \| Super \| Mini

Unlock your creativity with the BDD ESP32-C3 Development Board, a compact powerhouse featuring WiFi and Bluetooth 5 connectivity. Designed for IoT projects and wearables, it offers versatile I/O options and low power consumption for extended battery life. Experience seamless development with compatibility for Arduino IDE and a supportive community, making it the perfect choice for innovative solutions.

Tiny but powerful

Works very well for my projects small compact and powerful. I prefer this lately to using atmel chips. IDF is a nice framework to build projects and there are many third party libraries for oled, lcd screens and sensors the wifi connectivity is great for configuring settings later without needing to flash or build a physical interface.
