ESP32 Wire Terminal Breakout Board (Base) Only. For use with 38 Pin ESP32 / V4 GOOUUU Development Boards. (ESP32 DEVELOPMENT BOARD NOT INCLUDED)
ESP32 Wire Terminal Breakout Board (Base) Only
Overview

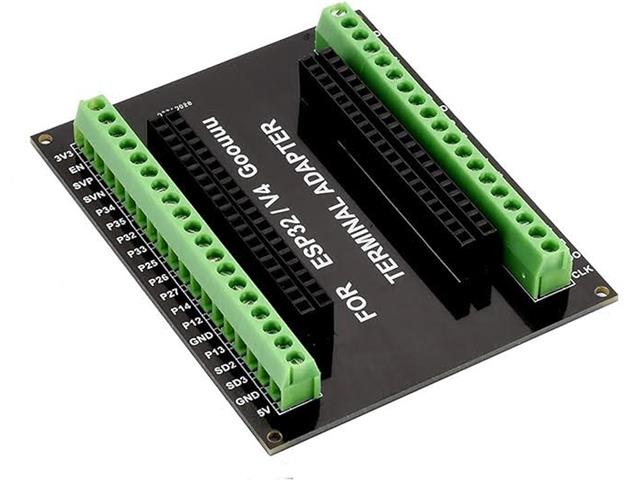

The ESP32 38-pin screw terminal breakout board is designed to simplify the connection process by breaking out the pins of the ESP32 to user-friendly screw terminals, offering unparalleled ease for your project development.
Specifications
COMPATIBILITY: Only suitable for 38 PIN version ESP32 / V4 Goouuu development boards. Not applicable to other versions

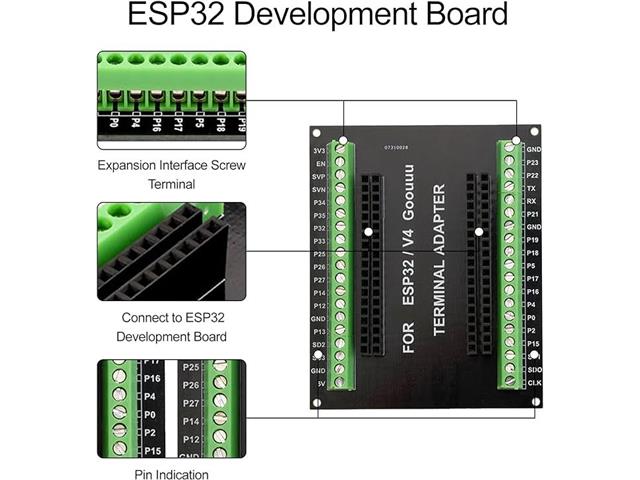

GPIO 1 INTO 2: This breakout board can expand one GPIO pin of esp32 development board to two, which is convenient for users to reuse all pins in smart home projects.
TWO TYPE CONNECTIONS: Pin Header Screw Terminal. Just select them according to your requirements.
DOUBLE-LAYER PCB: The expansion board is a double-layer board. One pin is wired on both sides. Therefore, the circuit is stable and highly reliable, and there will be no poor circuit contact and unstable signal transmission.

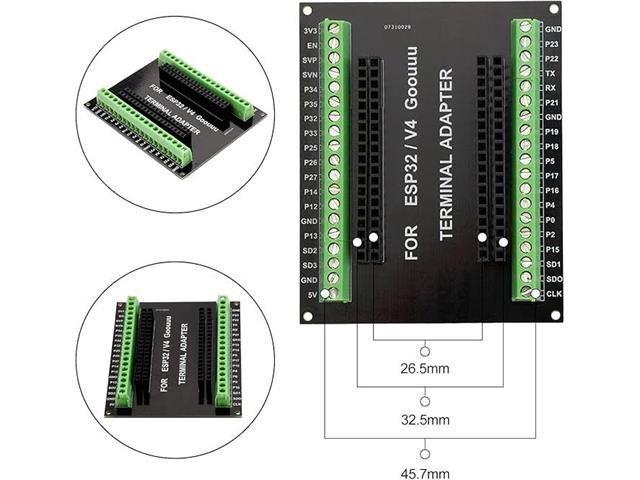

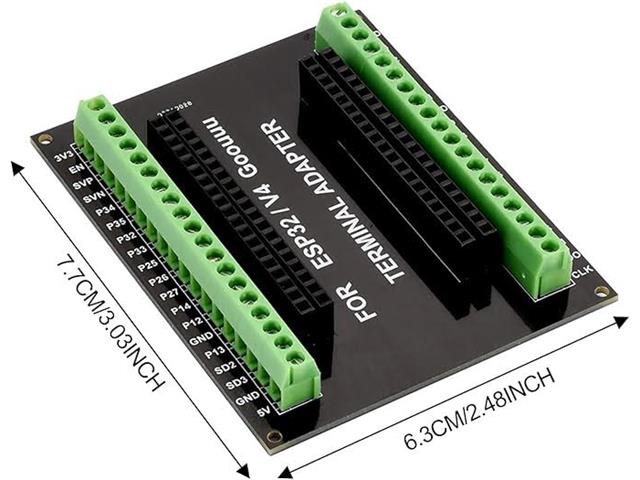

SIZE: 77 x 63 x 1.6mm
Additional Information
Device
Breakout Board
Type
ESP32 | Wire Terminal
Upgrade your ESP32 projects with the BDD ESP32 Screw Terminal Breakout Board, designed for seamless connections and enhanced reliability. This double-layer board simplifies pin access and expands GPIO functionality, making it perfect for smart home applications. Enjoy easy installation with user-friendly screw terminals and ensure stable signal transmission for your development needs.
