BDD FLEX SENSOR 4,5 INCH

Name: BDD FLEX SENSOR 4,5 INCH - Communica [Part No: BDD FLEX SENSOR 4,5 INCH]
Brand: Communica
SKU: BDD FLEX SENSOR 4,5 INCH
Price: 233.91 ZAR
Availability: InStock

SKU: BDD FLEX SENSOR 4,5 INCH

BRAND: Communica

R 269.00_{(inc VAT)}
R 233.91_{(ex VAT)}

🚚

Delivery time: 2-5 working days for South Africa

✓

In stock - Ready for immediate dispatch

Free shipping for orders over R1,000.00

Collections: IoT, Internet of things, New Arrivals

Type: Sensors

Category: Flexible Analog Bend / Displacement Sensor, Iot, New

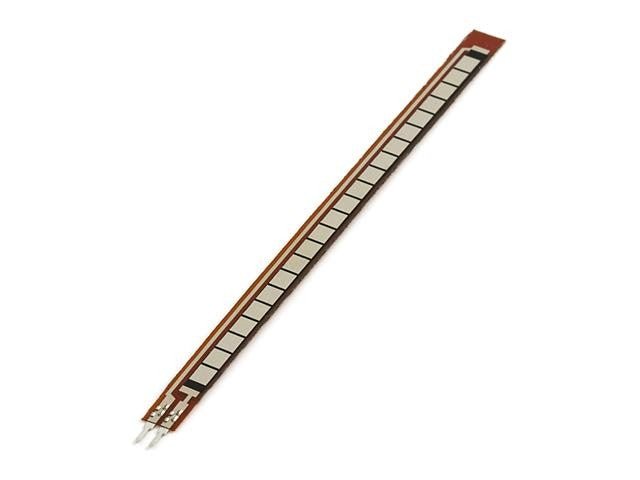

4.5 Inch (11.4cm) Bending Sensor. Bends and Flexes Physically with Motion Device

4.5 Inch (11.4cm) Bending Sensor

Overview

A simple flex sensor 4.5" in length. As the sensor is flexed, the resistance across the sensor increases. Patented technology by Spectra Symbol - they claim these sensors were used in the original Nintendo Power Glove.

The resistance of the flex sensor changes when the metal pads are on the outside of the bend (text on inside of bend).

Connector is 0.1" spaced and bread board friendly.

Features

Angle Displacement Measurement
Bends and Flexes physically with motion device
Simple Construction
Low Profile
Possible Uses
- Robotics
- Gaming (Virtual Motion)
- Medical Devices
- Computer Peripherals
- Musical Instruments
- Physical Therapy

Specifications

Flat Resistance : 10K Ohms ±30%
Bend Resistance : minimum 2 times greater than the flat resistance at 180° pinch bend
Power Rating : 0.5 Watts continuous, 1 Watt Peak
Life Cycle : >1 million
Height : 0.43mm
Temperature Range : -35°C to +80°C

Additional Information

Device

Bending Sensor
