The MPU-9250 is the company’s second generation 9-axis MotionTracking device for smartphones, tablets, wearable sensors, and other consumer markets. The MPU-9250, delivered in a 3x3x1mm QFN package, is the world’s smallest 9-axis MotionTracking device and incorporates the latest InvenSense design innovations, enabling dramatically reduced chip size and power consumption, while at the same time improving performance and cost.

Improvements include supporting the accelerometer low power mode with as little as 6.4µA of and it provides improved compass data resolution of 16-bits (0.15 µT per LSB). The full scale measurement range of ±4800µT helps alleviate compass placement challenges on complex pcb’s

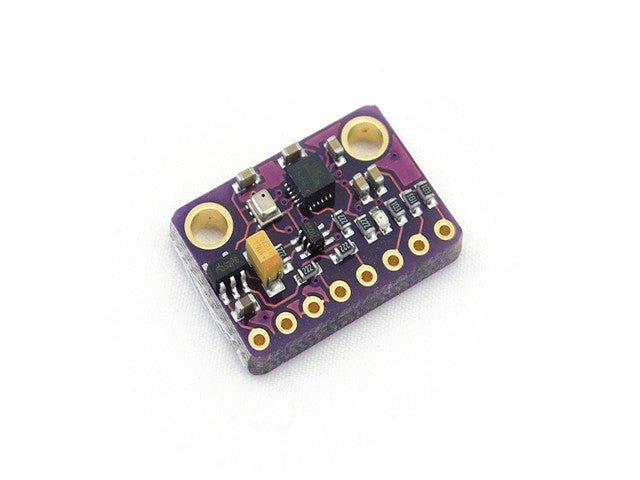

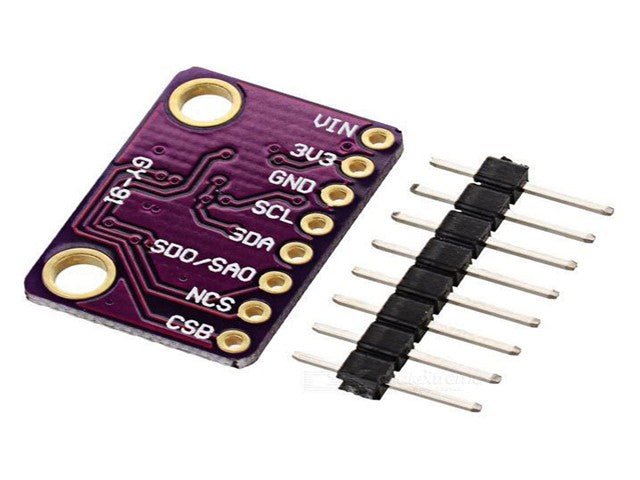

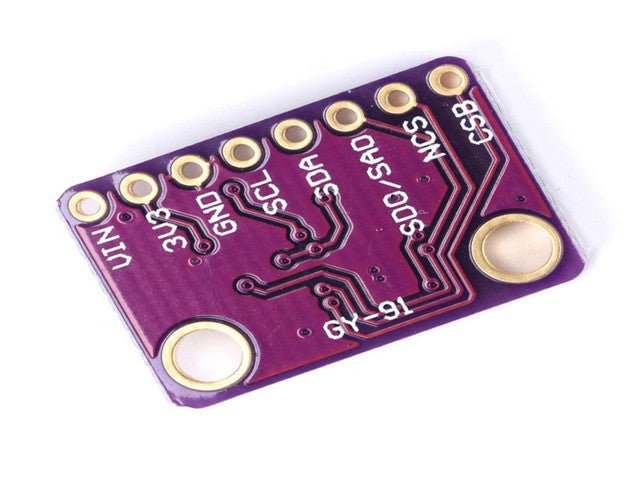

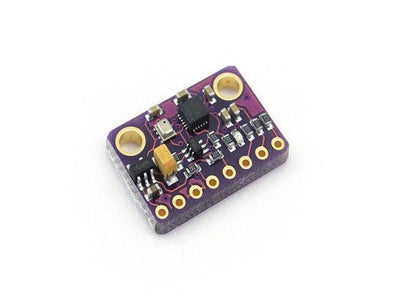

• MPU-9250 + BMP280 module
• (Three-axis gyroscope + triaxial accelerometer + triaxial magnetic field + pressure)
• Module Model: GY-91
• Use chip: MPU-9250 + BMP280
• Power supply: 3-5v (internal low dropout regulator)
• Communication: standard IIC / SPI communications protocol
• Chip 16bit AD converter, 16-bit data output
• Gyroscopes range: ± 250 500 1000 2000 ° / s
• Acceleration range: ± 2 ± 4 ± 8 ± 16g
• Field range: ± 4800uT
• Pressure range: 300-1100hPa
• Using Immersion Gold PCB, machine welding process to ensure quality
• 2.54mm pitch
• Module size 14.3mm * 20.5mm
