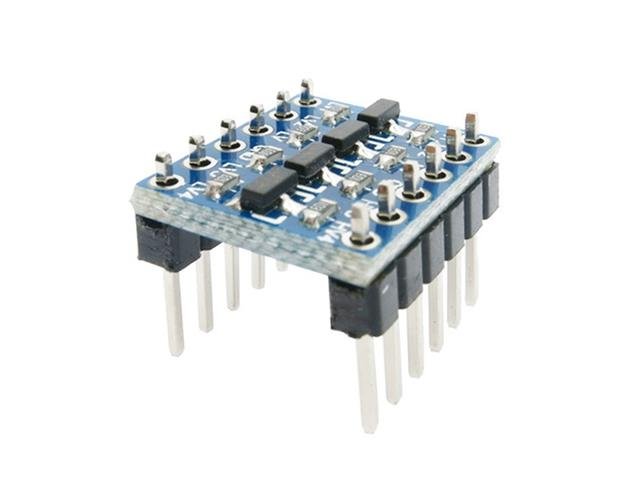

4 channel IIC I2C Logic Level Converter Bi-Directional Module
Can set high and low voltages and step up and down between them safely on the same channel
Specifications
Connects a 3.3V device to a 5V system
Steps down 5V signals to 3.3V AND steps up 3.3V to 5V simultaneously
This level converter also works with 2.8V and 1.8V devices.
Sets high and low voltages and step up and down on the same channel
Each level converter has the capability of converting 4 pins on the high side to 4 pins on the low side with two inputs and two outputs provided for each side.

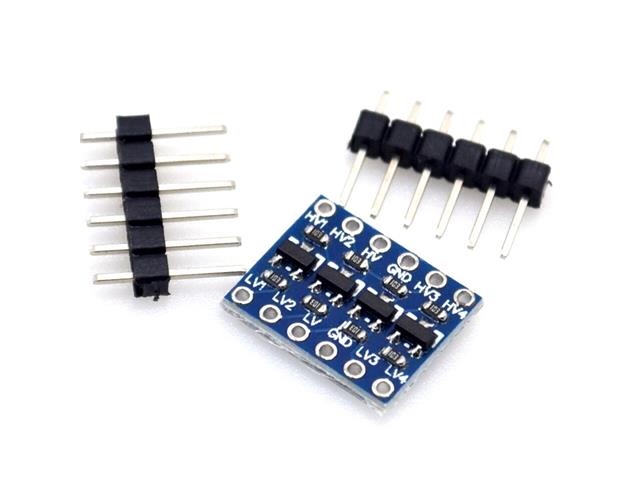

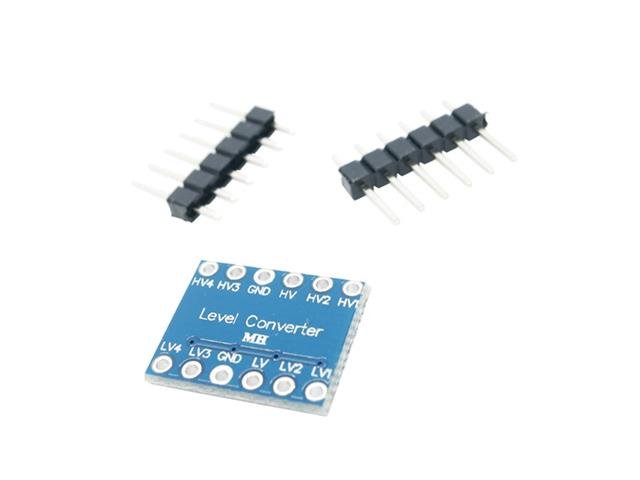

The board needs to be powered from the two voltages sources (high voltage and low voltage) that your system is using. High voltage (5V for example) to the HV' pin, low voltage (3.3V for example) to LV', and ground from the system to the GND' pin
Dimensions : 0.63 x 0.52" (16.05 x 13.33mm)
Additional Information
Device
Converter
Type
4 Channel | IIC | I2C | Logic Level
Upgrade your projects with the BMT Logic Level Converter, a versatile 4-channel IIC I2C module designed to safely step up and down between 3.3V and 5V systems. Perfect for connecting devices seamlessly, this bi-directional converter enhances compatibility and ensures reliable communication. Maximize your electronics potential with this essential tool for hobbyists and professionals alike!
