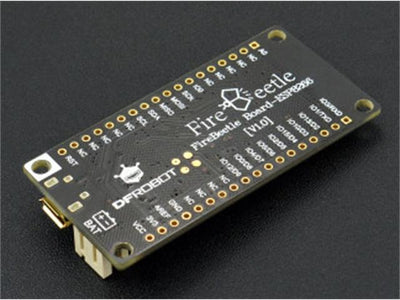

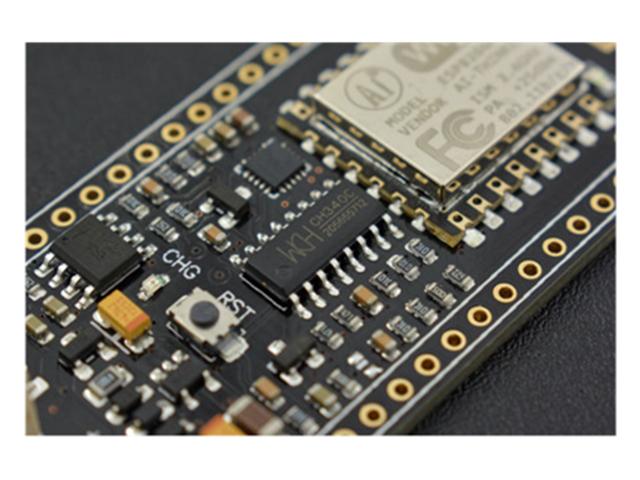

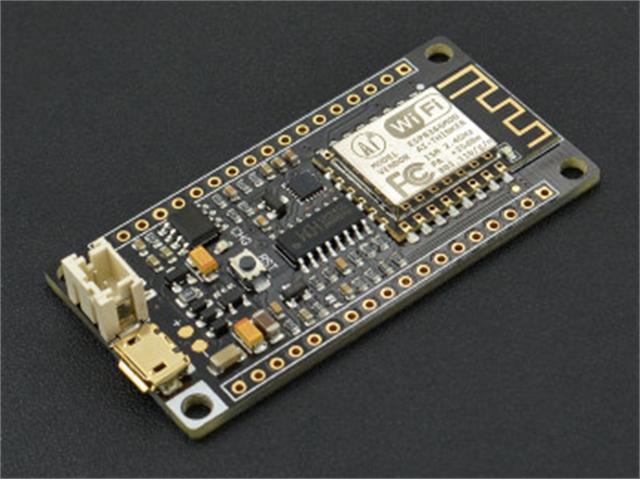

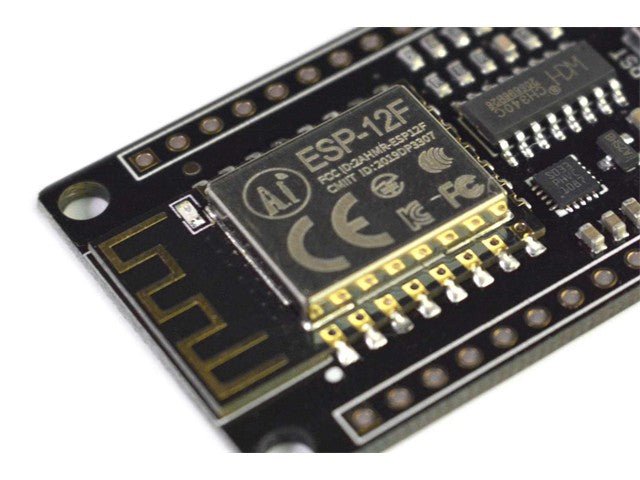

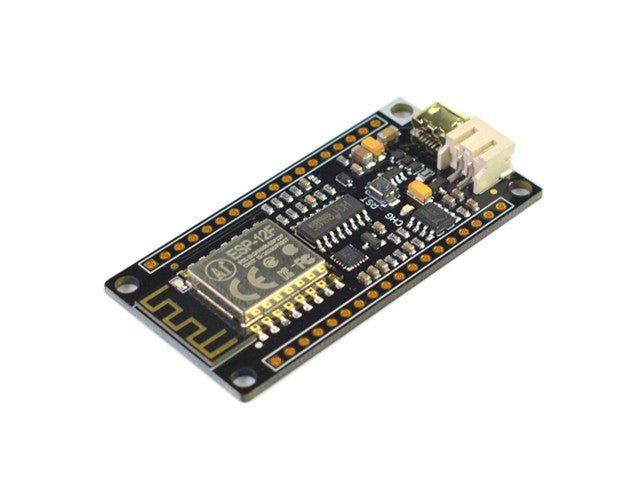

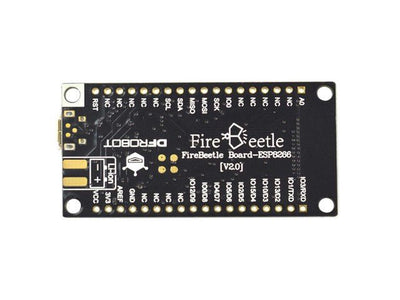

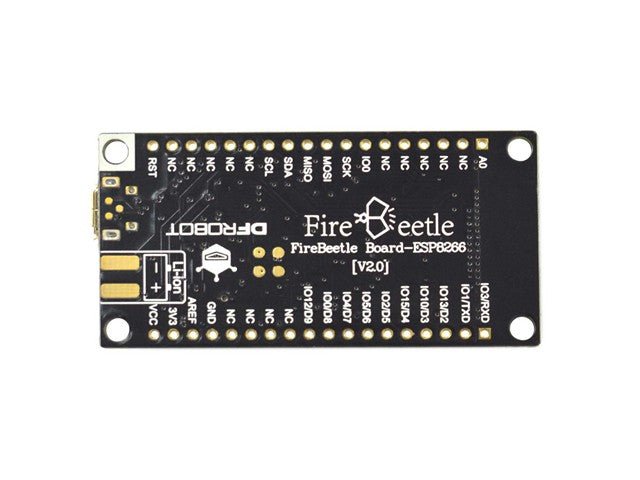

FireBeetle ESP8266 IOT Microcontroller (Supports Wi-Fi)

FireBeetle ESP8266 IOT Microcontroller

Overview

DFRobot FireBeetle is a series of low-power-consumption development hardware designed for Internet of Things (IoT). Firebeetle ESP8266 is a development board integrated with IoT WiFi, TCP/IP, 32-bit MCU, 10-bit ADC, and multiple interfaces such as HSPI, UART, PWM, I2C, and I2S. In DTIM10, the full power consumption to maintain a WiFi connection reached 1.2mW. Equipped with 16MB outer SPI flash memory, ESP8266 is available for programs and firmware storage.
Compatible with Arduino programming enables Firebeetle ESP8266 to lower the barrier of programming. The operator can implement Arduino programming codes directly onto ESP8266 to reduce the difficulty of operating and increase the stability of the esp8266 board.

In the programming stage, Firebeetle Board-ESP8266 supports RTOS SDK in Linux, Arduino IDE, and Micropython.

wiki

Features

Compatible with FireBeetle series
Compatible with Arduino programing
Built-in 32-bit Tensilica L106 MCU and 10-bit ADC
Support RTOS SDK in Linux, Arduino IDE and Micropython.
Support IEEE802.11 b/g/n WiFi (2.4 GHz~2.5 GHz)
Support TCP / IP
Support Lithium Battery (The Maximum charge current: 500mA)
Support Low Power Consumption
Support OTA Updating
Support STA/AP/STA+AP

Specifications

Operating Temperature: -40℃~+85℃
Operating Voltage: 3.3V
Input Voltage (limits): 3.3~5V (Lithium Battery:3.7V & USB:5V)
Microcontroller: Tensilica L106 (32-bit MCU)
Clock Speed: 80MHz (Maximum: 160MHz)
SRAM：50KB
External Flash Memory: 16MB
DC Current in the Low-Power-Consumption: 46uA
Average Operating Current: 80mA
Maximum Discharging Current: 600mA (LDO-3.3 Output)
Maximum Charging Current: 500mA

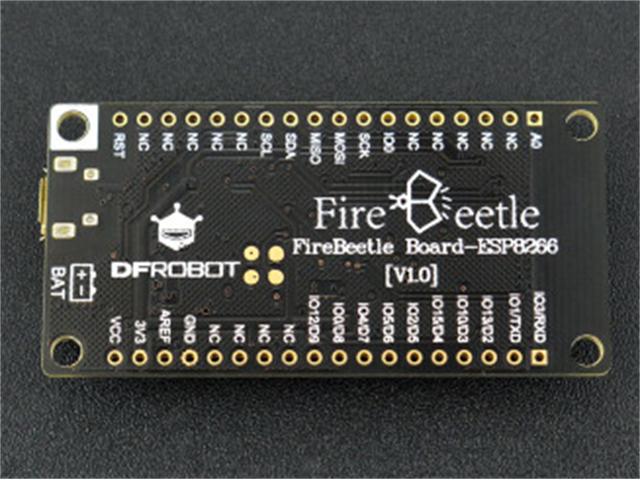

Digital Pin x10
Analog Pin x1
SPI interface x1
I2C interface x1
IR interface x1
I2S interface x1
Interface: XH2.54mm Pin (No soldering default)
In Combination of Wi-Fi MAC/ BB/RF/PA/LNA
WiFi: IEEE802.11 b/g/n (2.4 GHz~2.5 GHz), not support 5GHz WiFi

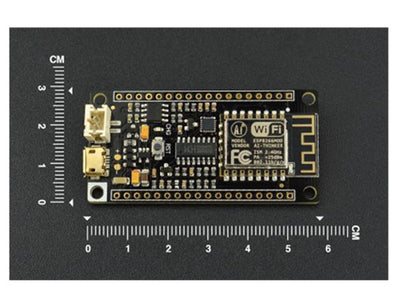

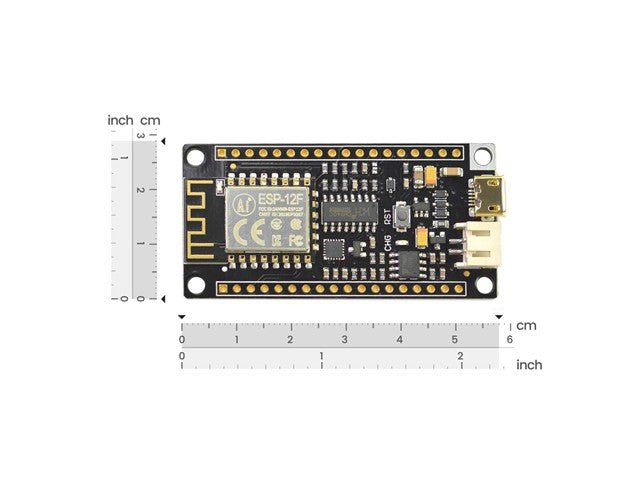

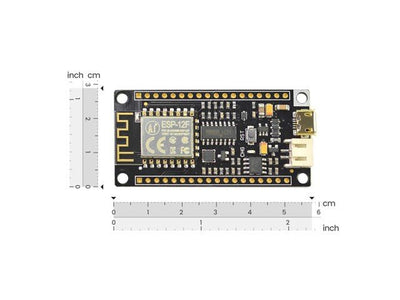

Dimension: 58 × 29(mm)
Operating Temperature: -10℃~+55℃
Mounting Hole Dimension: 53 x 24(mm)
Weight: 24g

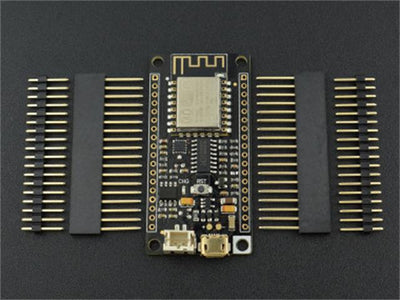

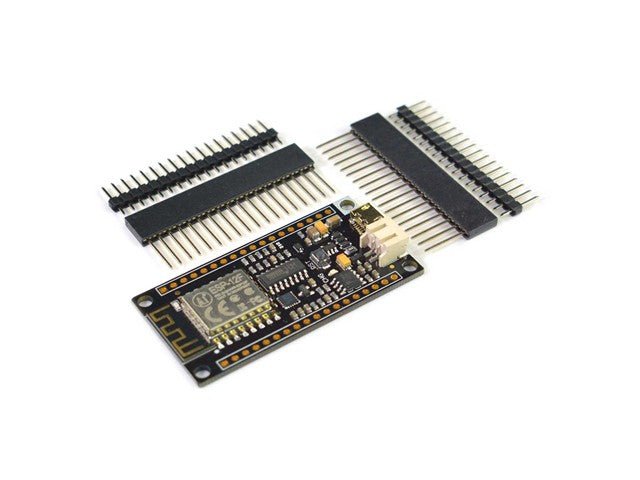

Shipping List

FireBeetle Board-ESP8266 ×1
18pin-2.54mm ×2
18pin-2.54mm Female Holder ×2
